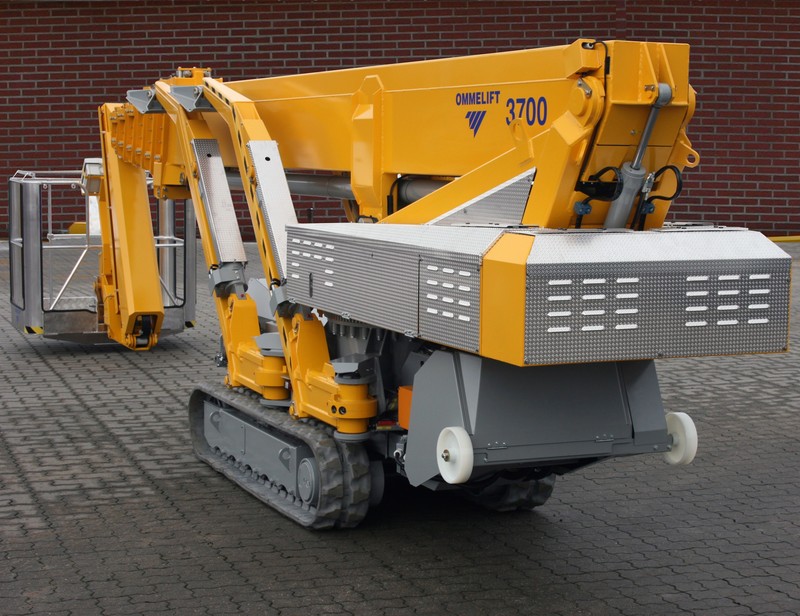

3700 RJ
* Click on the image to view
Versatile
The diesel and battery bi-energy power pack makes the lift equally efficient in outdoor as in indoor environments. At outdoor operation the diesel engine is the natural choice. When working indoor the electronic motors powered by 8 high capacity batteries are the motive force. No annoying and hazardous extension cables linked to mains are needed when travelling down the indoor lanes with an amazing speed and turning strength

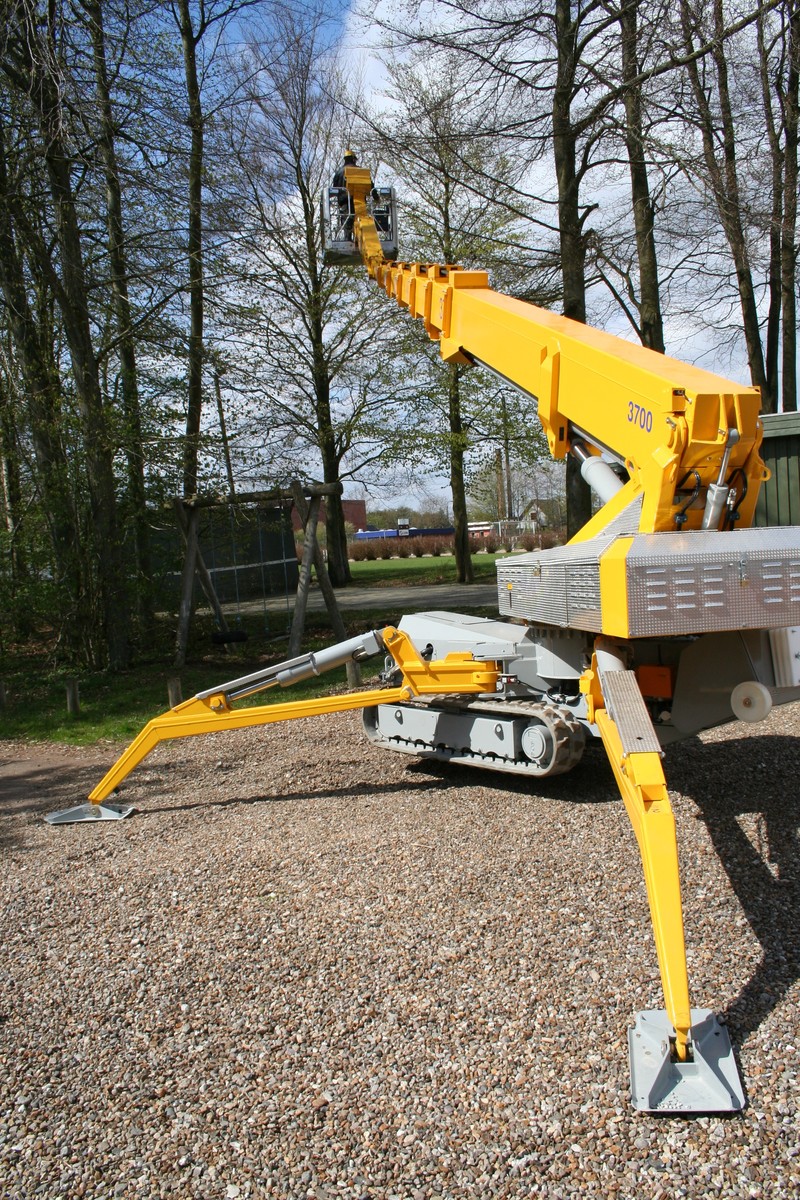

The rapid 2-gear undercarriage is quickly in position and the boom system takes a 250 kg basket load to maximum height in less than 3 minutes. The outreach is limited through the load moment control system at approx. 14,2 m. A 130° fly-jib facilitates working up and over obstacles and the +/-41° basket turn enables operation in narrow and awkward places.

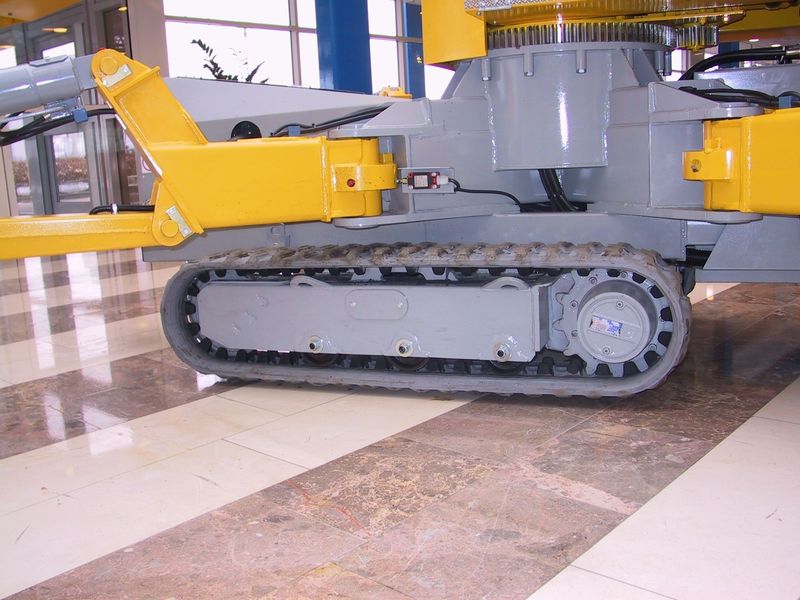

The Omme Lift 3700 RJ is designed to traverse soft, muddy or hilly terrain but the crawler chassis is also dispersing the machine's weight of approx. 5500 kg widely when travelling on delicate surfaces like pavements, lawns, marble or similar. Generally in connection with applications where high and extensive reach is required but low weight a necessity.
Up to 30% set-up ability provides operation on levels where self-propelled booms are unfit to work due to too steep inclines. Or maybe the self-propelled booms are just too big and just too heavy to use in the environment.

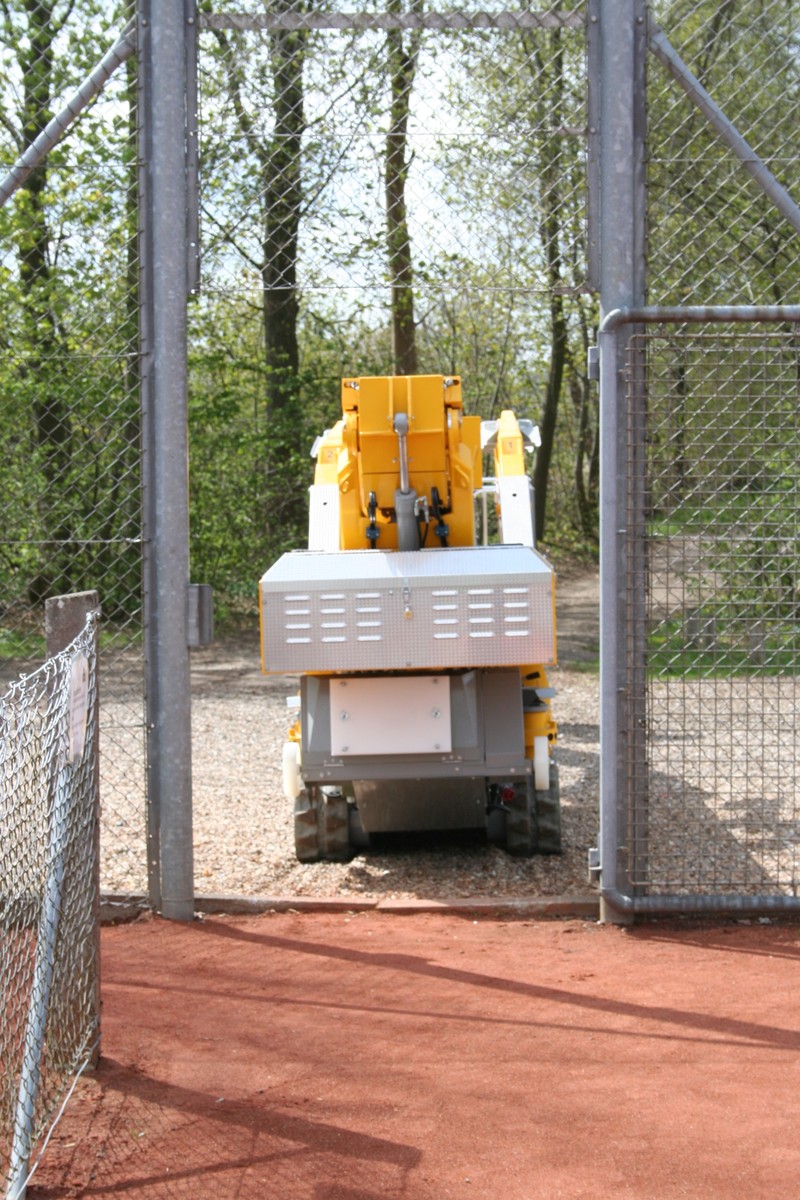

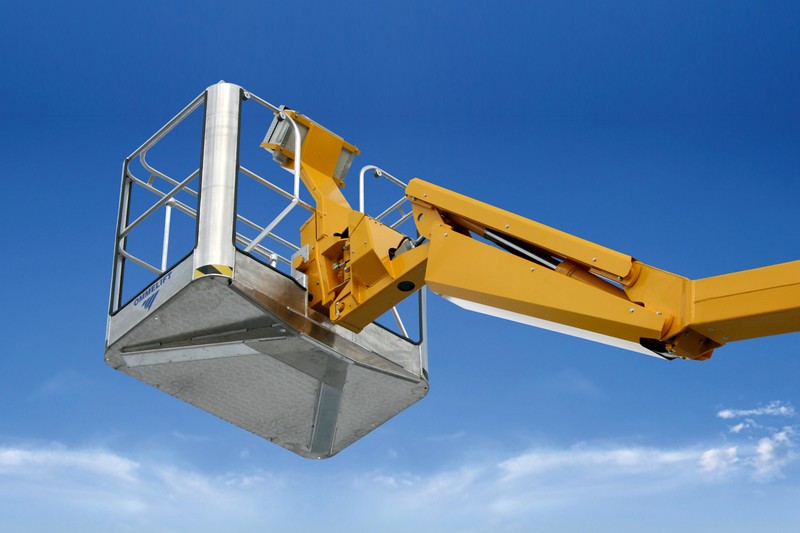

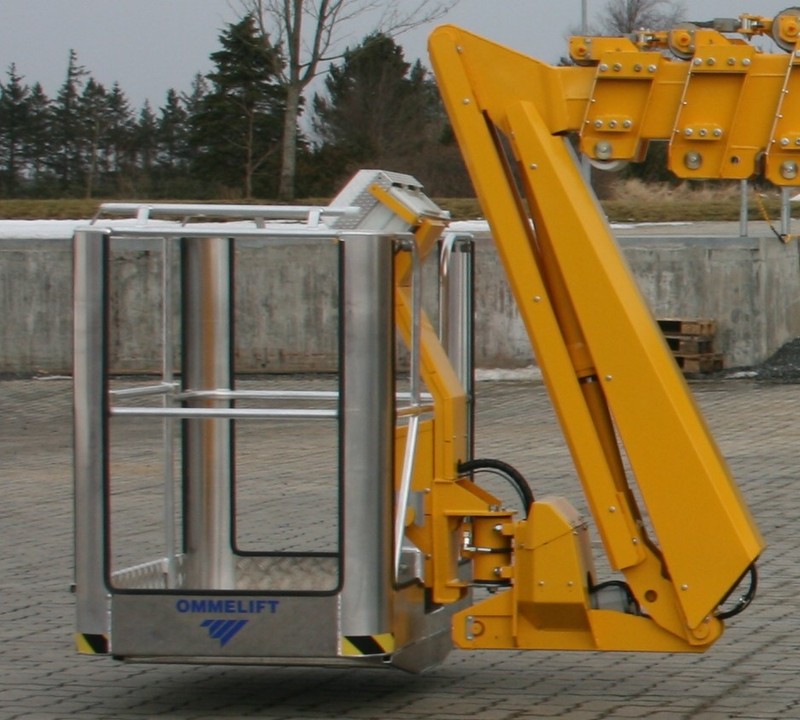

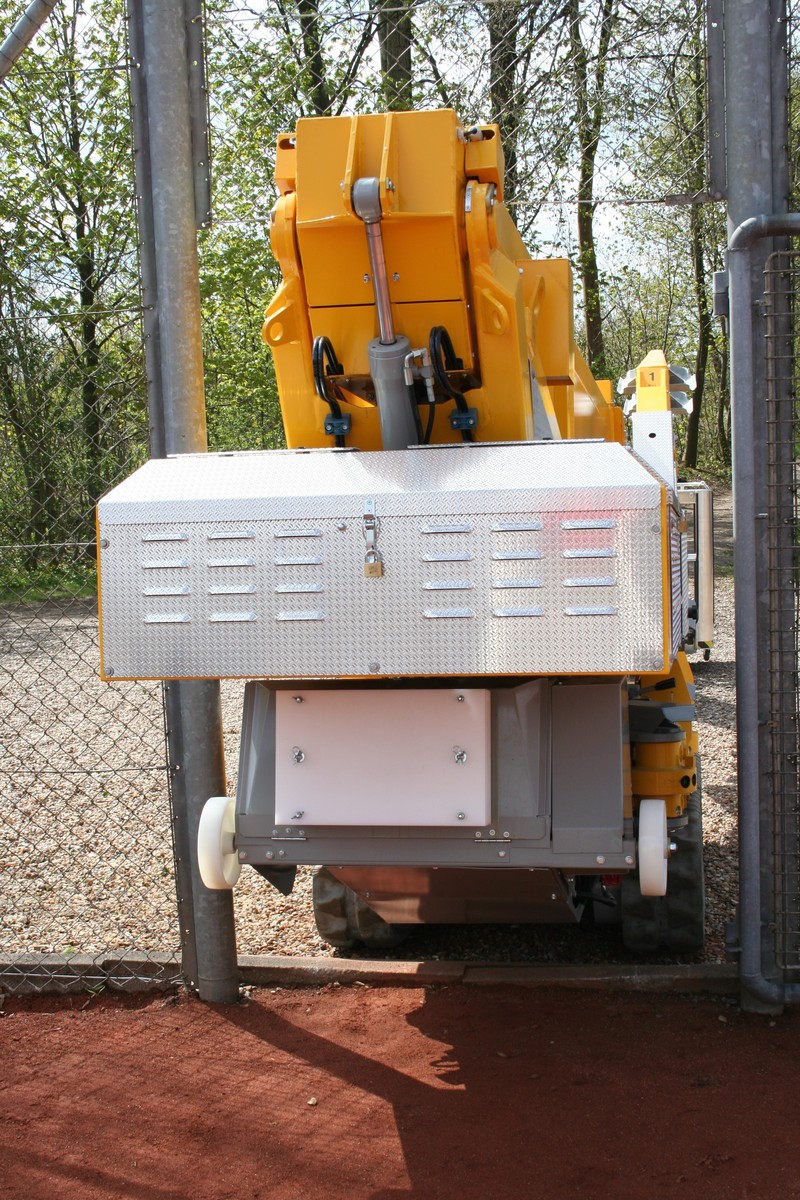

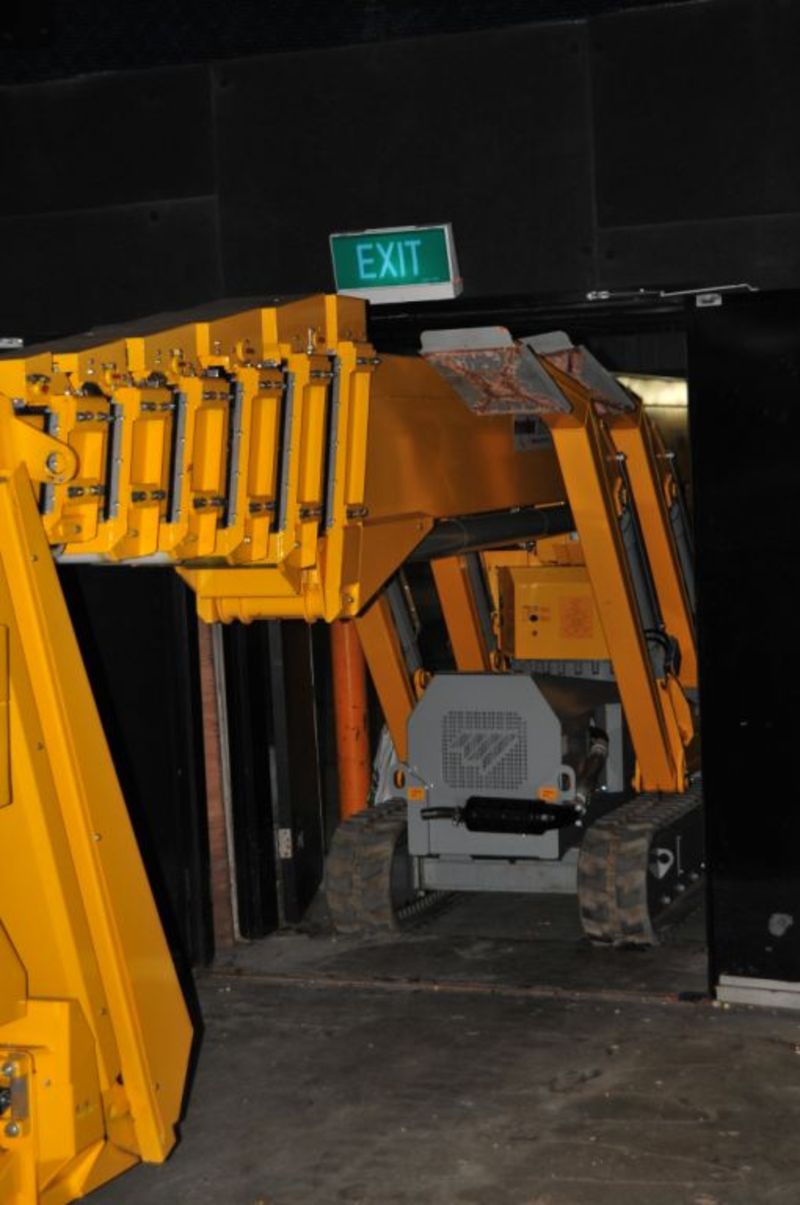

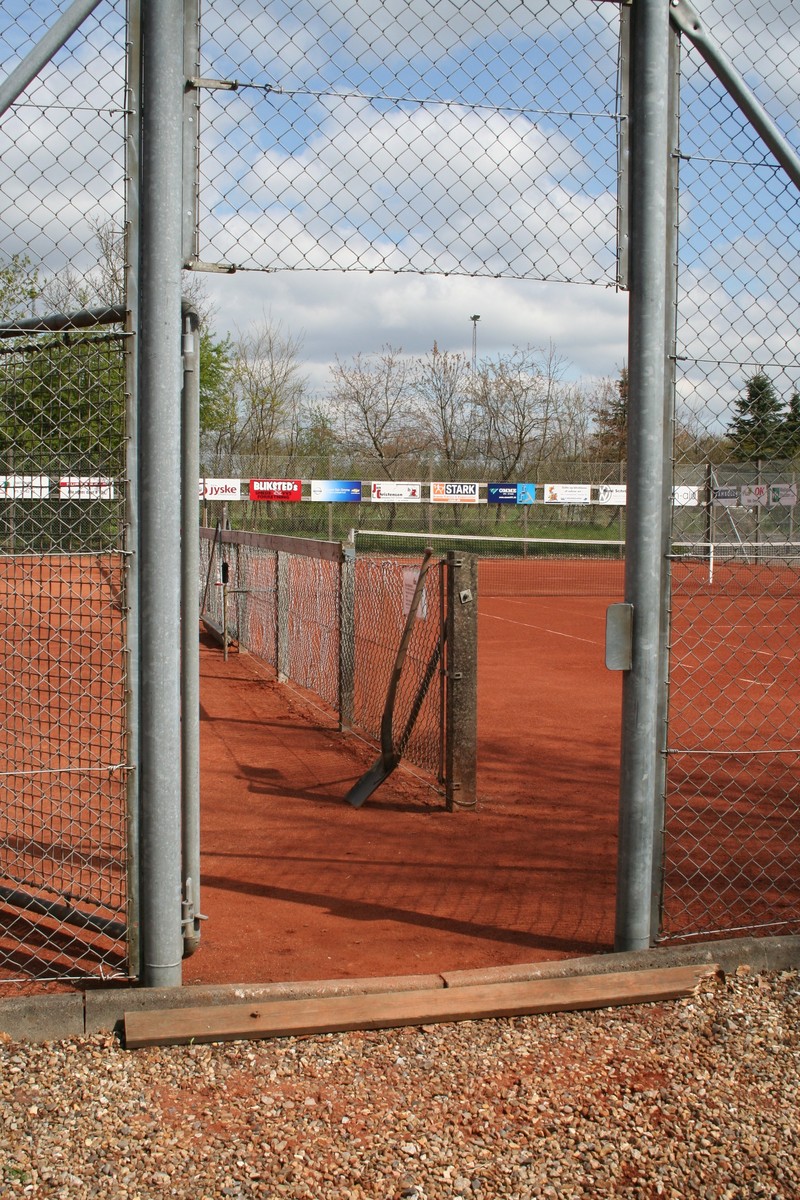

Compact dimensions allow access into tight areas. The detachable basket provides reduced length and increased manoeuvrability. The 1.50 m width can be retracted hydraulically to only 1.10 m.
Technical features |
||
---|---|---|

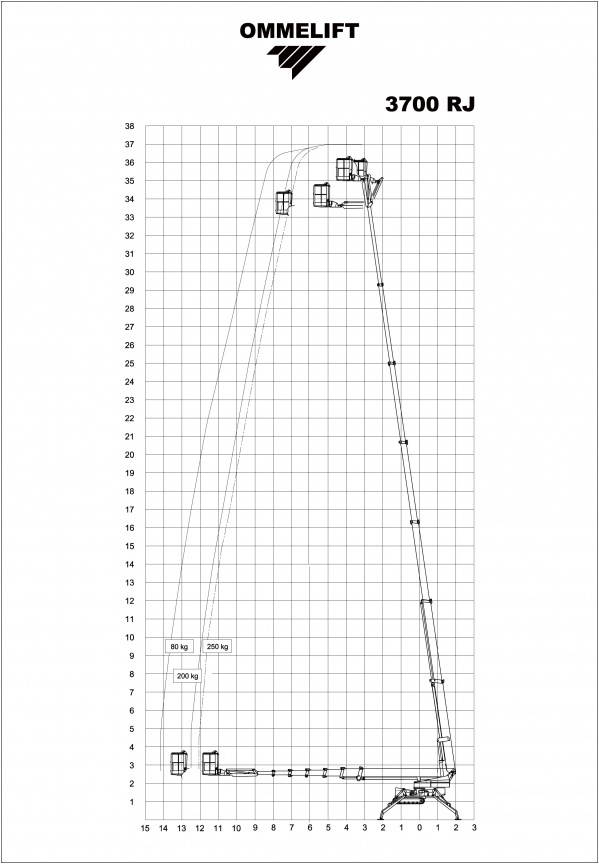

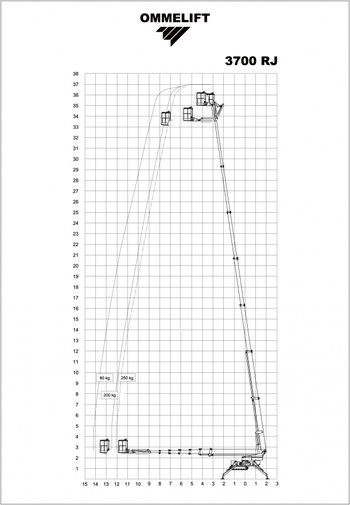

Max. working height | 36.9 m | |
Max. outreach | 14.2 m | |
Basket size | 1.25x0.8x1.1 m | |
Travelling length | 8.00/7.40 m | |
Travelling height | 1.99 m | |
Travelling width | 1.5/1.1 m | |
Operational width | 4.78/3.86 m | |
Rotation ± | 355° | |
Max. basket load | 250 kg | |
Total weight approx | 5500 kg | |
Turntable basket ± | 41° | |
Battery | 24 V 400 Ah/5h | |
Charger | 24 V 30 A | |
Generator | 24 V 22 A *3700 RBDJ | |
Gradeability across slope up to | 35 % 19.3 ° | |
Gradeability up and down slope u...p to | 35 % 19.3 ° | |
Deployment ability procent | 30 % 16.7 ° | |
Diesel motor | 14 kW 18.8 hp *3700 RBDJ | |
Automatic stabilizer levelling s...down | Option | |
Flash lights - crawler | Option | |
Spotlight in basket O16 | Option | |

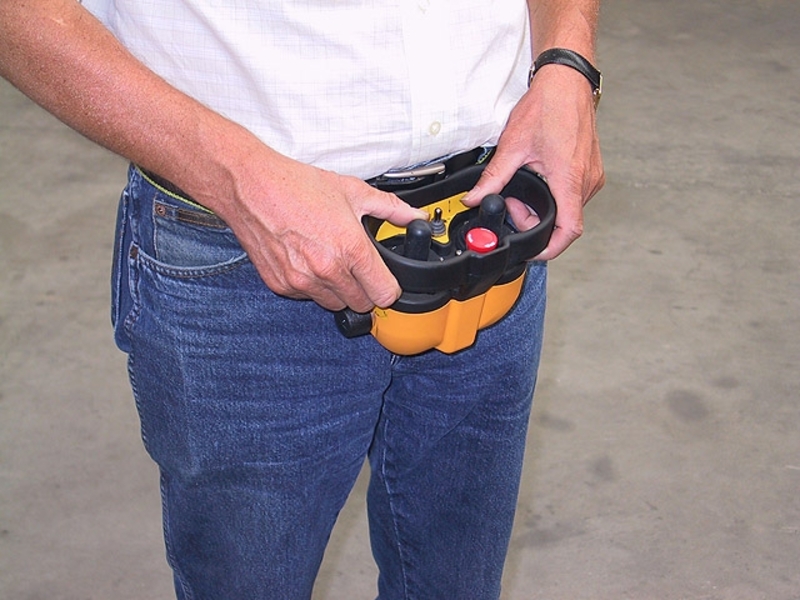

Wireless remote control (drive o...nly) | Option |
