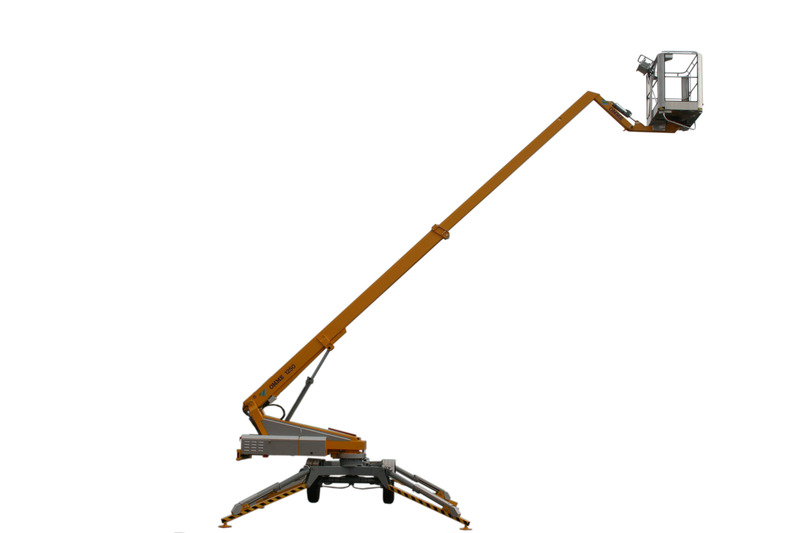

1250 E

* Click on the image to view

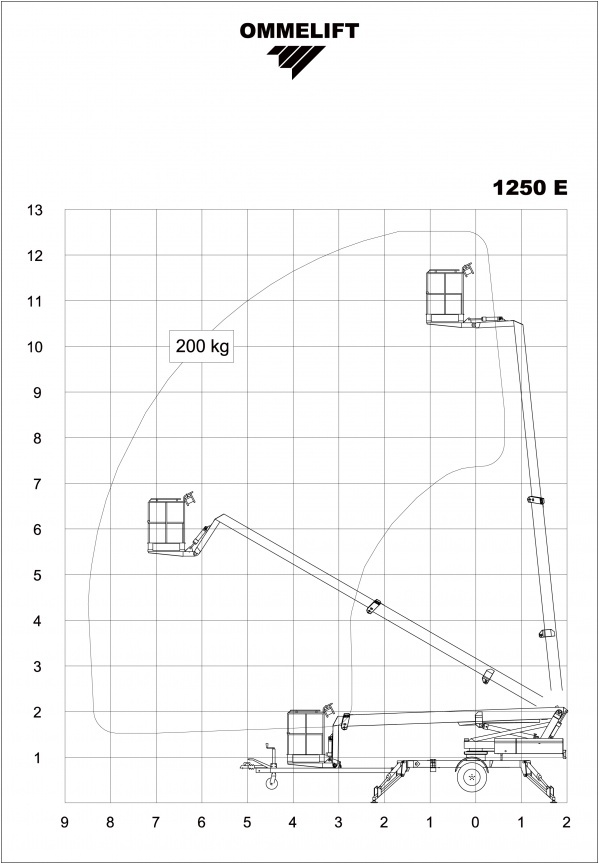

Increased outreach

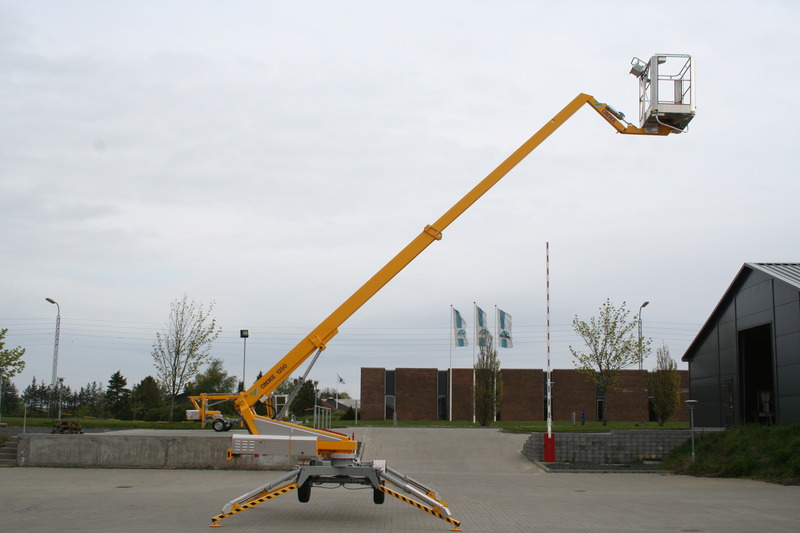

1250 E and 1250 EB are identical apart from their power sources. Standard features include hydraulic stabilizers and 2-step dual controls to ground and basket. Design features include a basket mounting that forms a "fly" boom mounted to the top boom section and gives increased outreach over roof edges or other obstacles.
The specially designed steel booms made from high and broad profiles allow a great outreach with an exceptional degree of stability and rigidity. The wiring and the telescopic cylinder are protected inside the boom system.
1250 E is mains powered 230 V and is especially suited, where continuous or extended operation is required.
1250 EB is powered by a heavy duty (24V/200Ah/5h) battery pack with built in charger capable of charging the batteries whilst the platform is in use. Type 1250 EB is especially suited for jobs, without mains access.
Technical features |
||
---|---|---|
Max. working height | 12.5 m | |
Max. outreach | 8.5 m | |
Basket size | 1.25x0.8x1.1 m | |

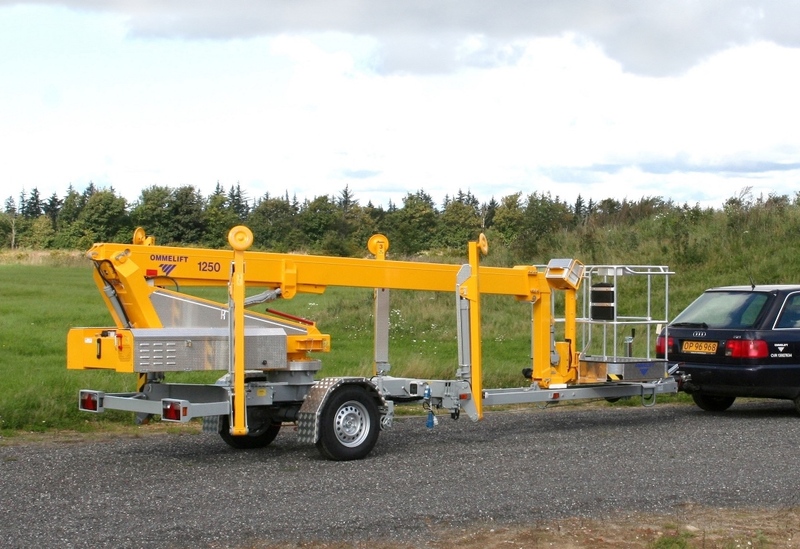

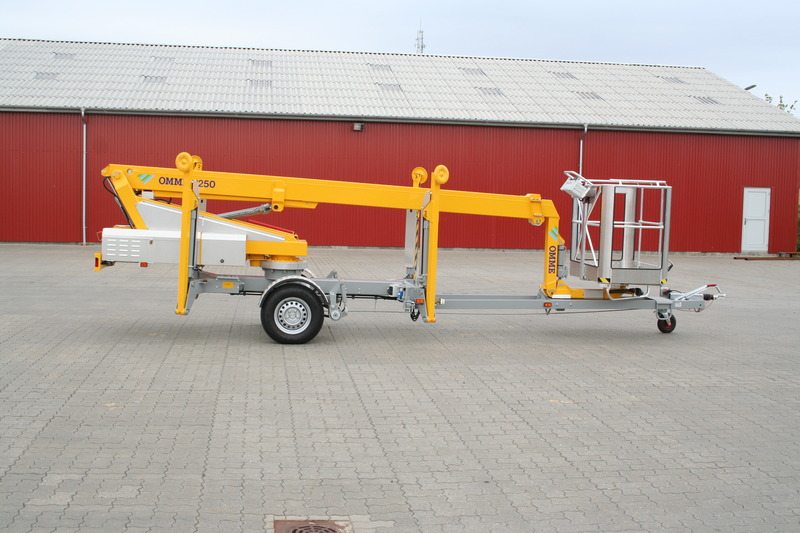

Travelling length | 7.10 m | |
Travelling height | 1.97 m | |
Travelling width | 1.60 m | |
Operational width | 4.10 m | |
Power supply | 230 V 16 A | |
Rotation ± | 400° | |
Max. basket load | 200 kg | |
Total weight incl. propulsion | 1600 kg | |
Turntable basket ± | 41° | |
Battery | 24 V 200 Ah/5h *1250 EB | |
Charger | 24 V 30 A *1250 EB | |

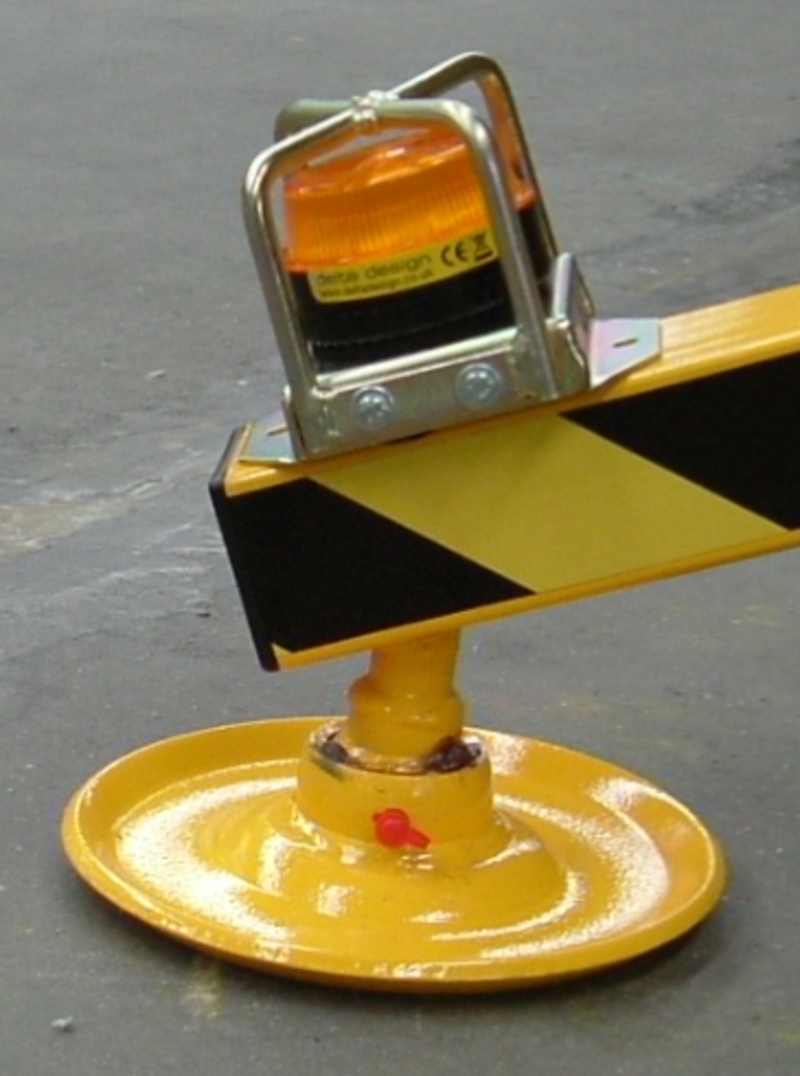

Flash lights | Option | |

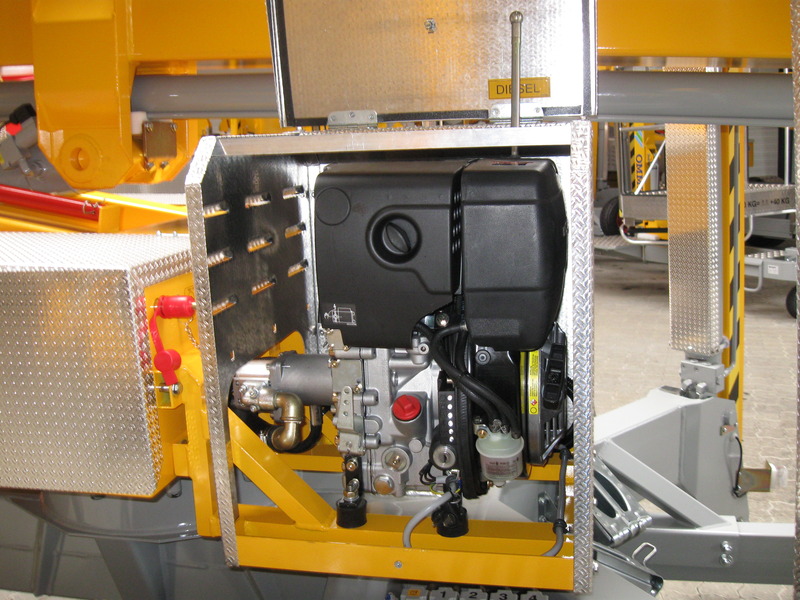

Hatz diesel engine with oil pump | Option | |

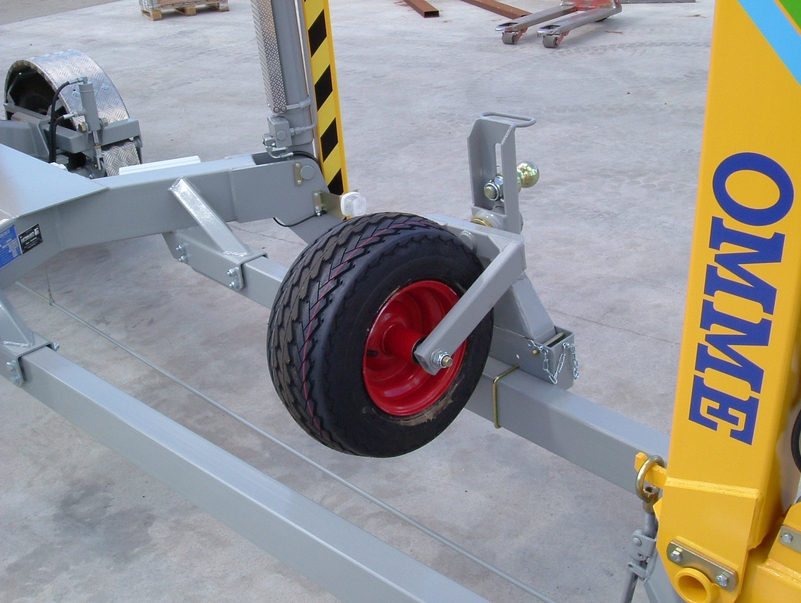

Holder for nose wheel | Option | |

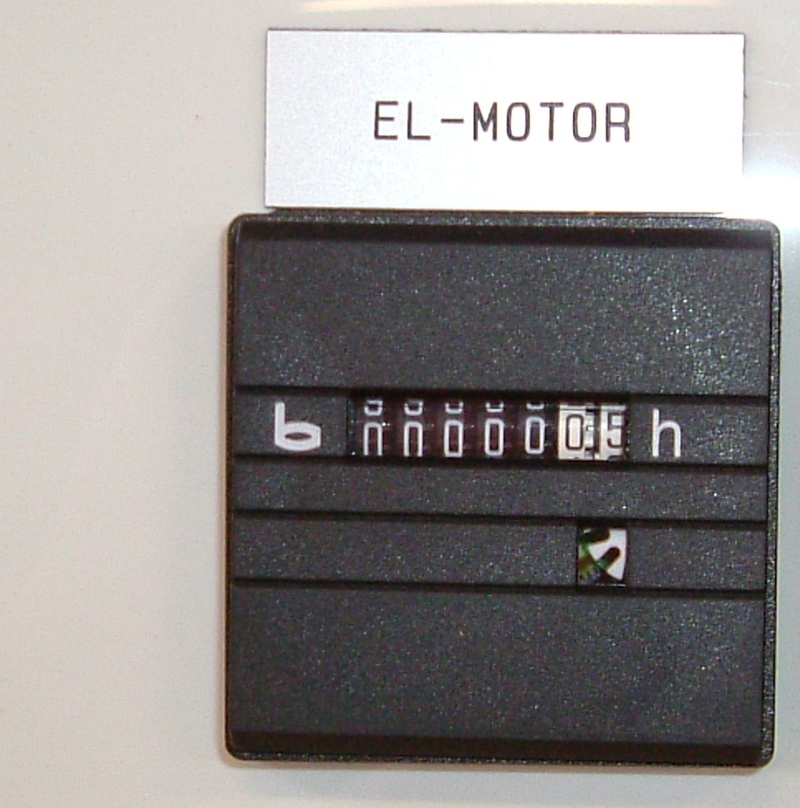

Hour meter | Option | |

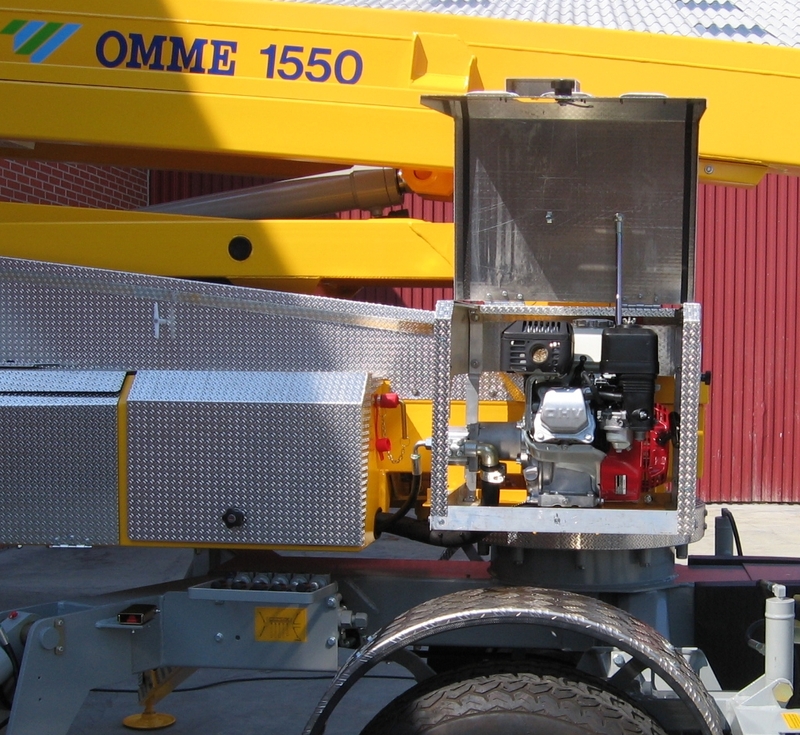

Petrol engine with oil pump | Option | |

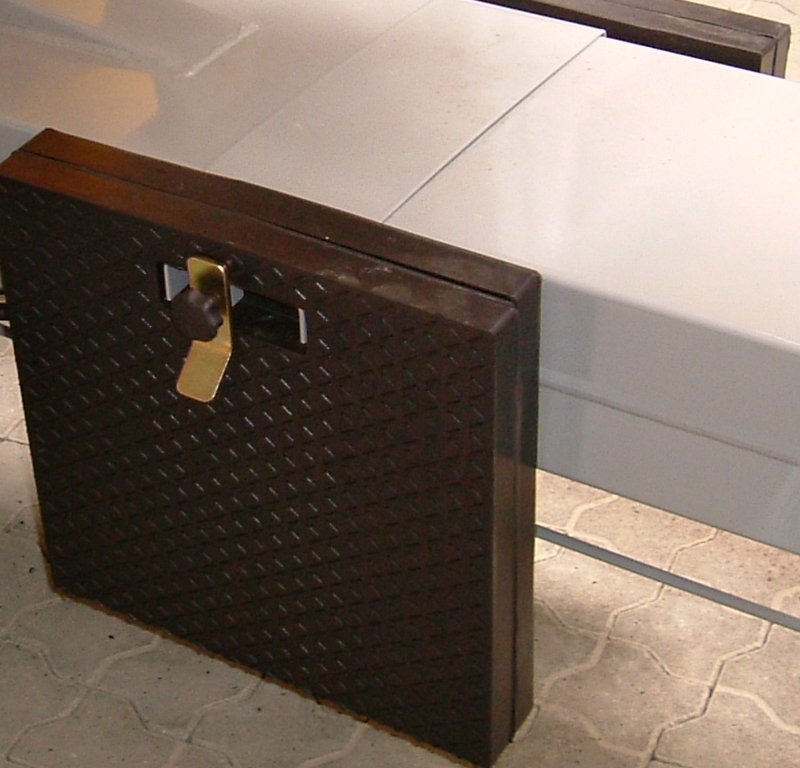

Plates for stabilizer | Option | |

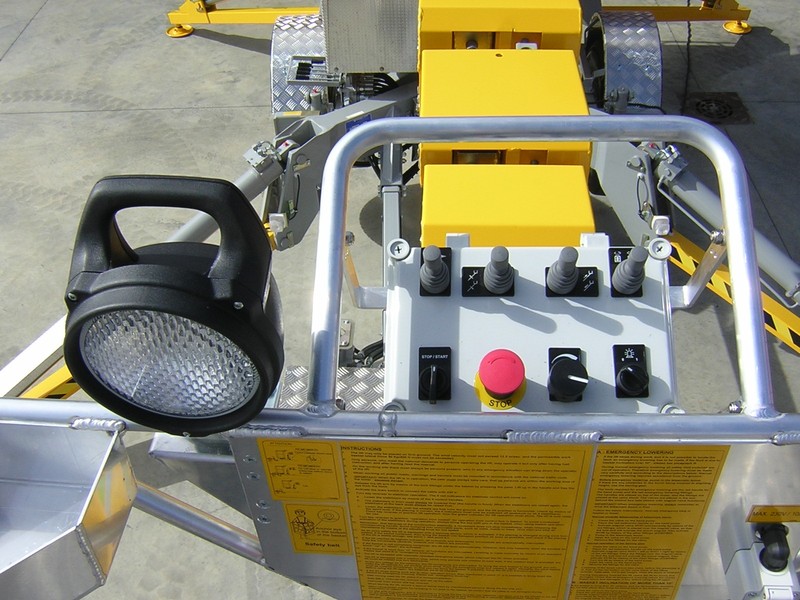

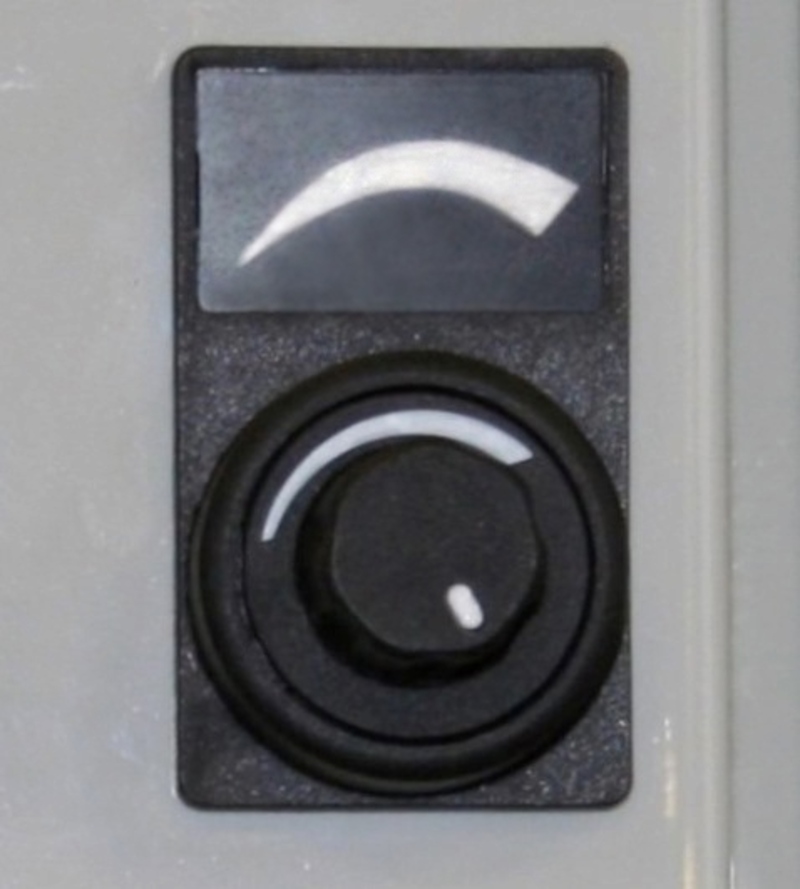

Proportional controls | Option | |
Special colour | Option | |
Spotlight in basket O16 | Option | |

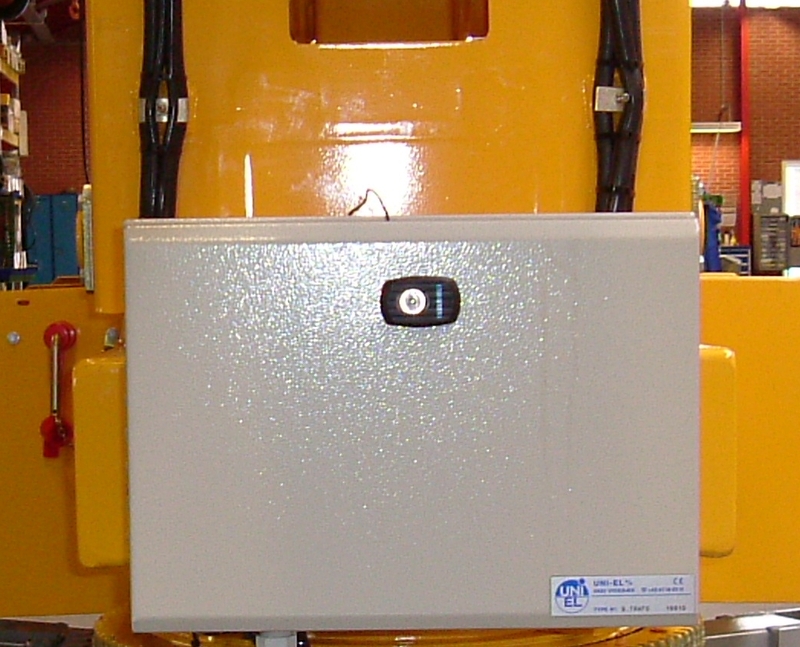

Transformer | Option |
