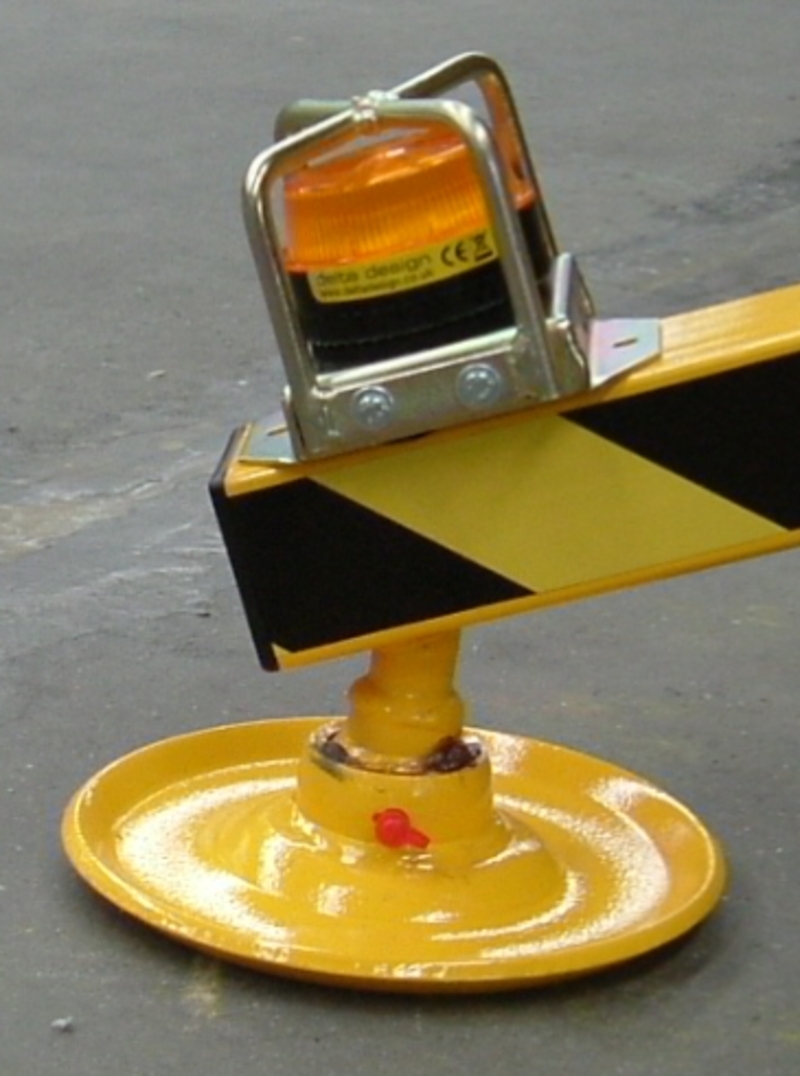

Flash lights

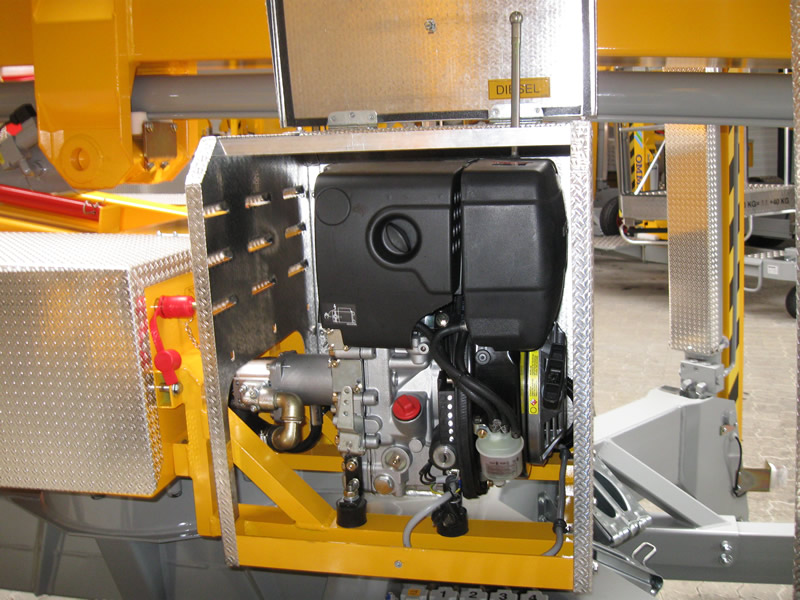

Hatz diesel engine with oil pump

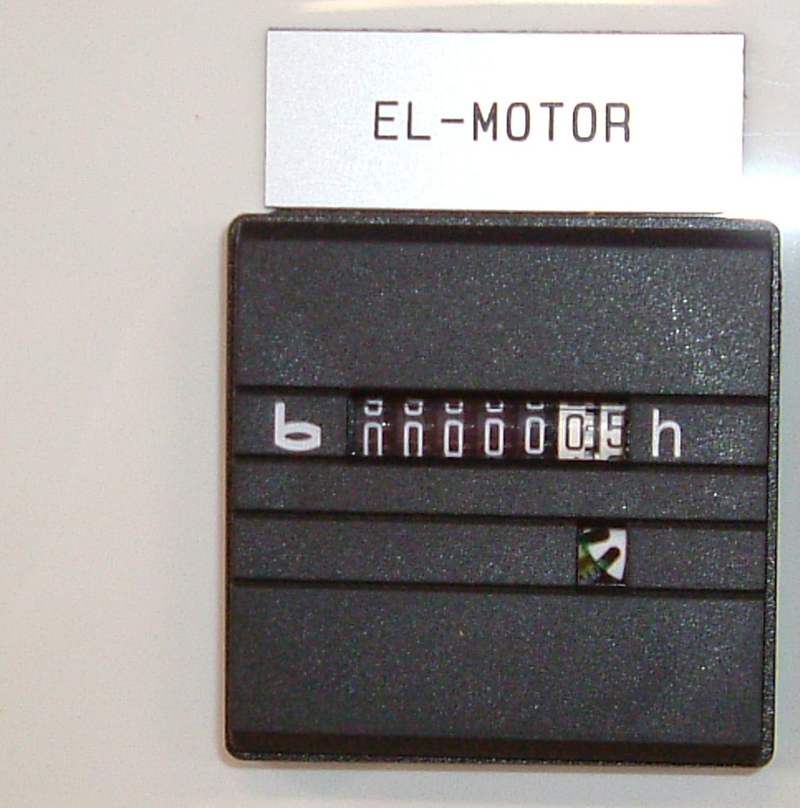

Hour meter

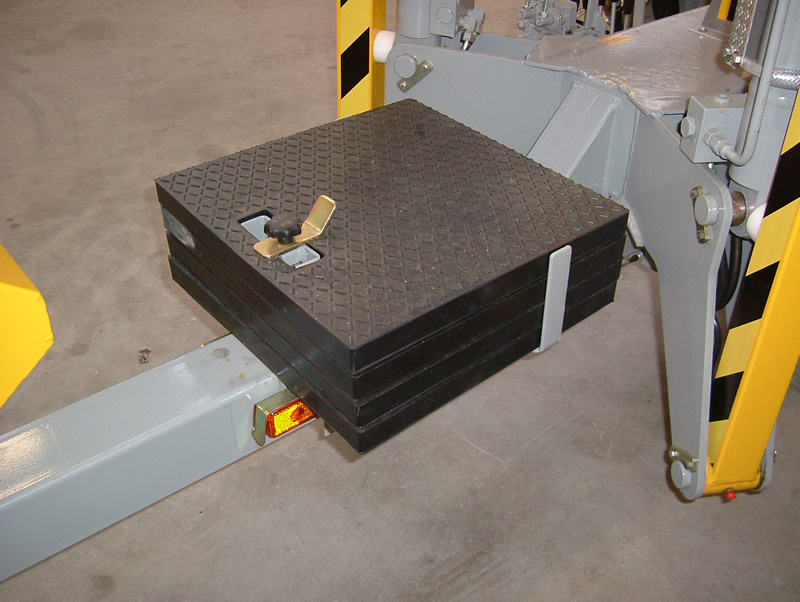

Plates for stabilizers Mini 12 EJ & 15 EXJ
Special colour
Spotlight in basket O16
Industrial Access SA -
Acces & Lifting Equipment Division
Phone +4021 313 02 00
Mobile +40 788 NACELA
Products » For sale products » Mini trailer lifts
Mini 15 EXJ
* Click on the image to view
Big features - light and easy
Type Mini 15 EXJ is powered by 230V mains and is especially suitable where continuous operation is required. Type Mini 15 EXBJ is also powered by a heavy duty 24V/139 Ah battery pack with built-in charger capable of charging the batteries whilst the platform is in use. Operation is also possible independently of mains connection.

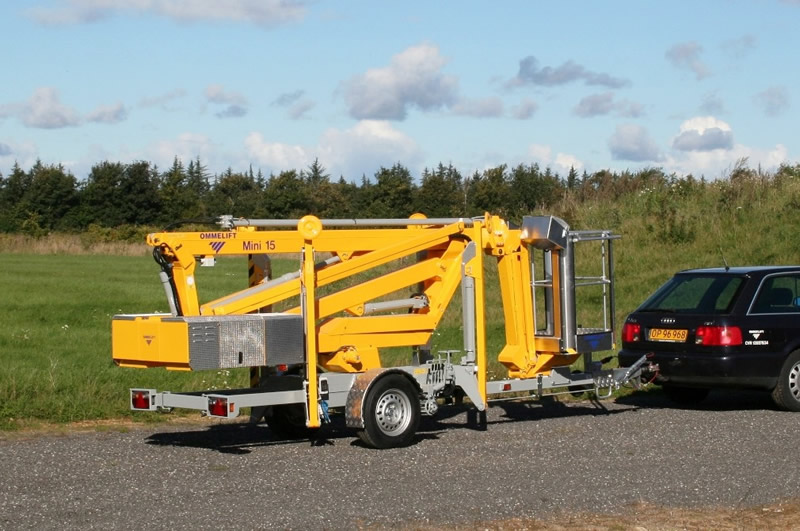

Weighing only 1500 kg it is towable by cars and smaller vans.

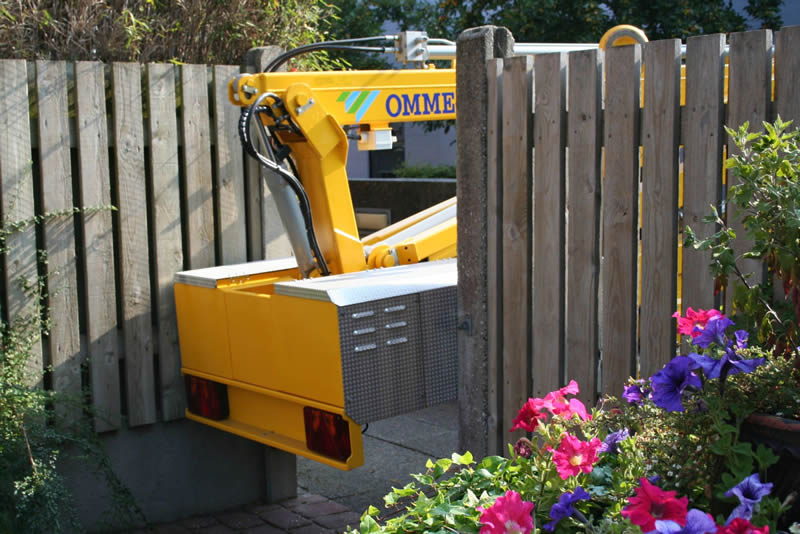

With the axles retracted, the overall width is down to 1.05 m which enables the lift to pass through narrow openings. Standard features also include hydraulic stabilizers, tool tray and power outlet in the basket.

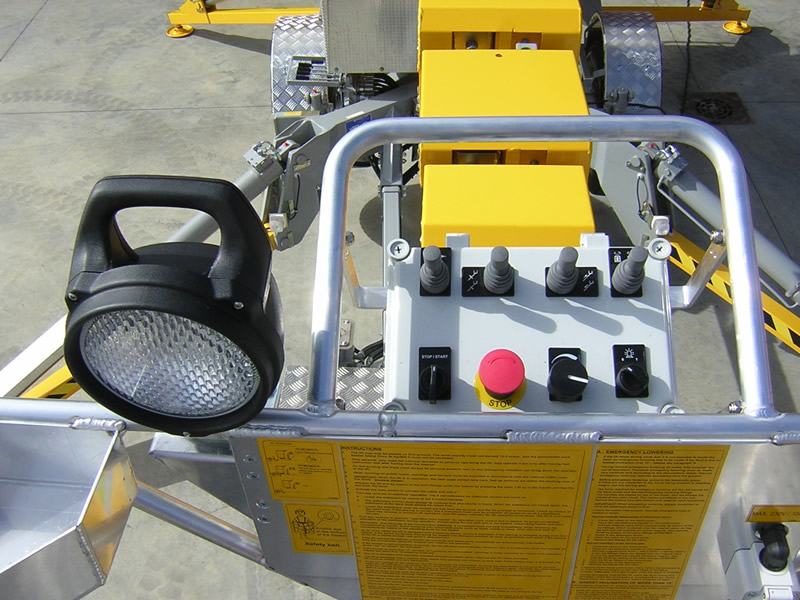

Easy to operate controls are available in the basket and at base. The high and low speed facility gives steady and smooth movements.

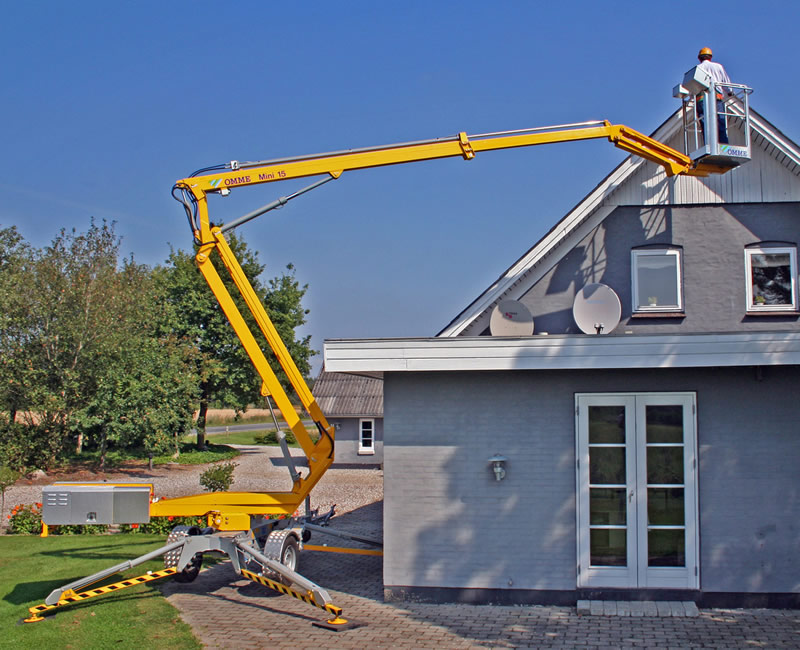

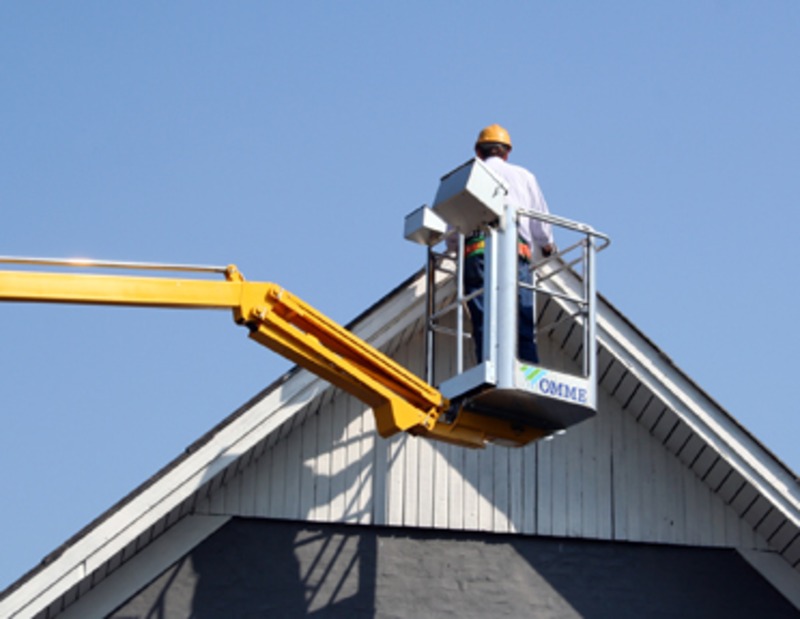

The fly jib provides access up and over roof edges or other difficult to reach areas. The jib also lifts the basket up behind obstacles. Generally, the fly jib means more convenient and precise manoeuvrability.
Equipped with an unfolding scissor system giving the lift an increased up and over outreach over high obstacles.
Technical features |
||
|---|---|---|
| Max. working height | 14.6 m | |
| Max. outreach | 8.27 m | |
| Basket size | 0.85x0.7x1.1 m | |
| Travelling length | 6.03 m | |
| Travelling height | 1.94 m | |
| Travelling width | 1.50 / 1.05 m | |
| Operational width | 3.63 m | |
| Power supply | 230 V 10 A * only at Mini 15 EXJ | |
| Rotation ± | 355° | |
| Max. basket load | 125 kg | |
| Total weight approx | 1500 kg * incl. propulsion | |
| Fly jib | 1.08 m | |
| Battery | 24 V 139 Ah/5h * only at Mini 15 EXBJ | |
| Charger | 230 V * only at Mini 15 EXBJ | |
