3000 R / 3150 RJ
* Click on the image to view
Gradeability

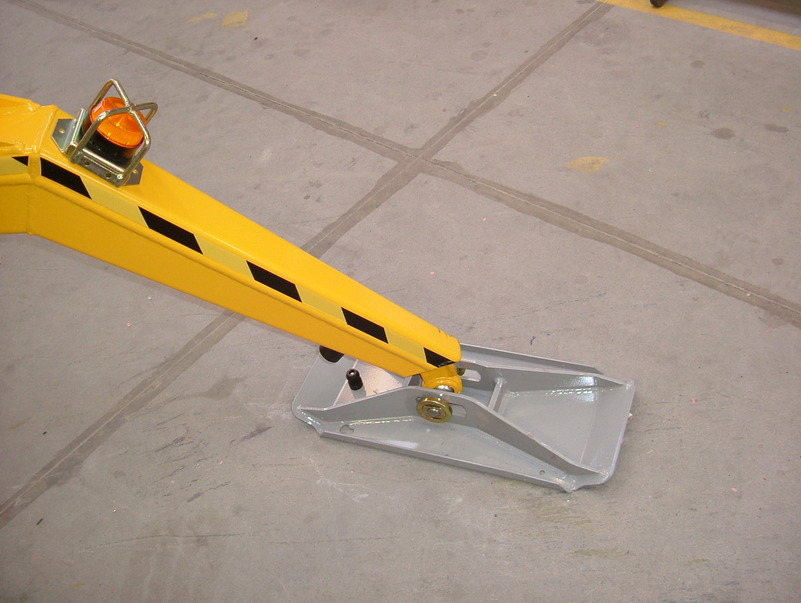

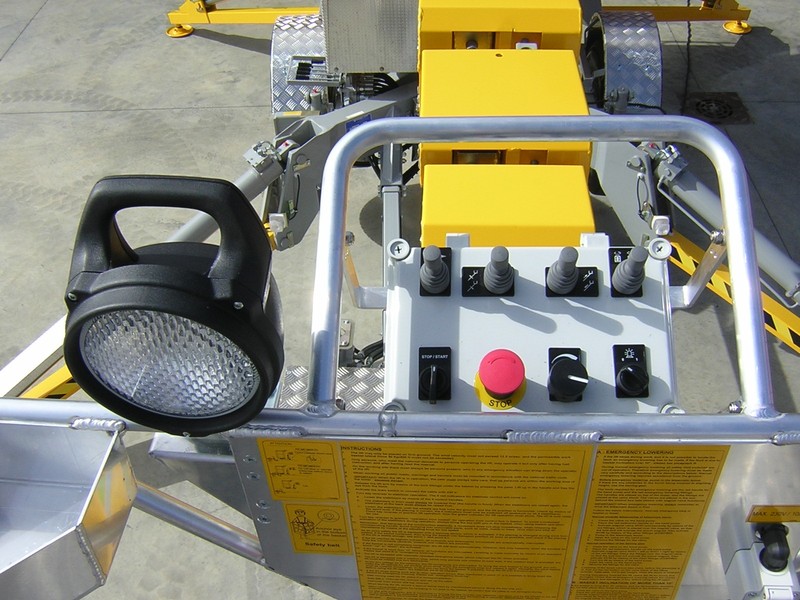

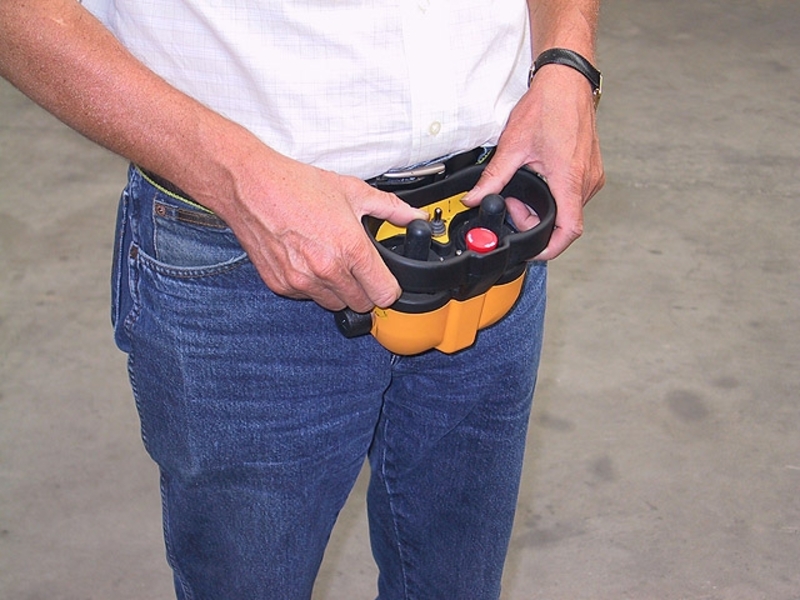

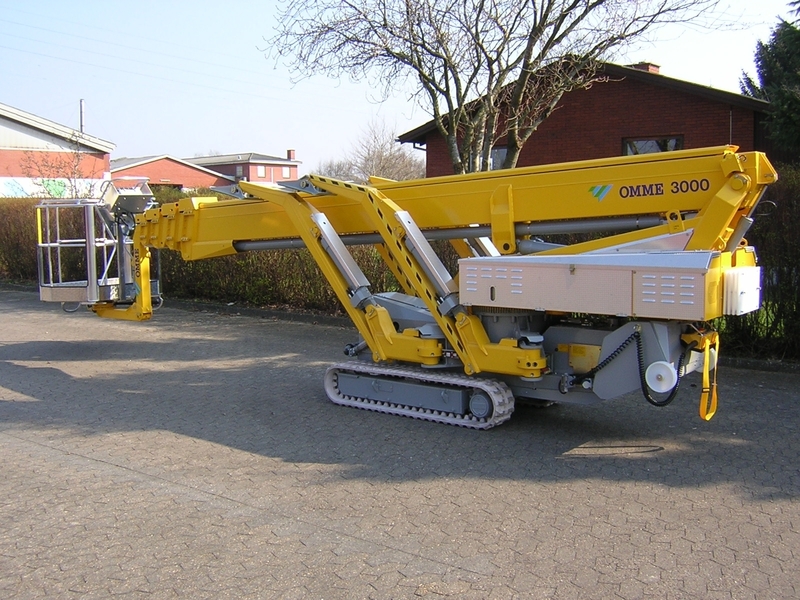

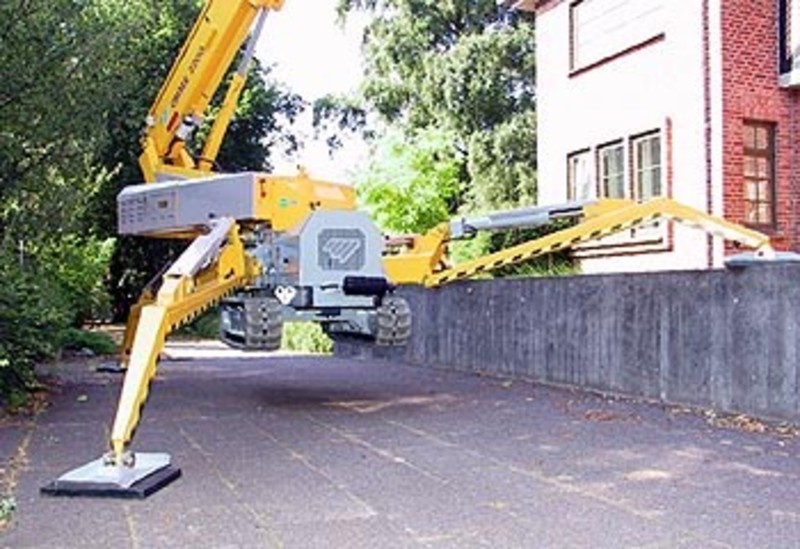

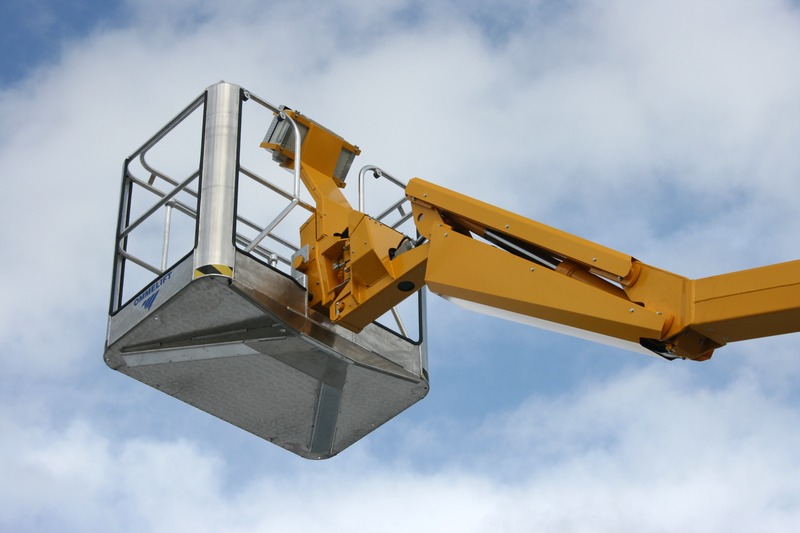

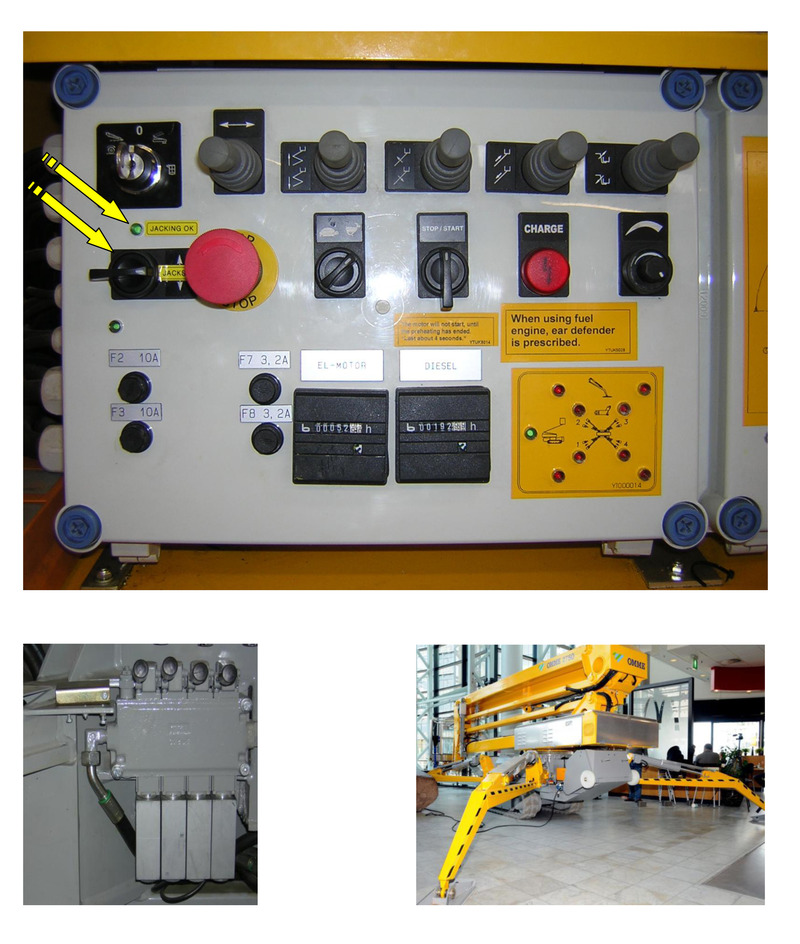

Type 3000 RB and 3000 RBD are identical apart from the power sources. Standard features include hydraulic stabilizers, turnable basket and proportional controls. The adjustable stabilizer spread provides substantial reduction in operational width. The basket mounting that forms a "fly" boom mounted to the top boom section gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places. The self-propulsion system is electronically operated by proportional levers comfortably placed in a light weight mobile control box.

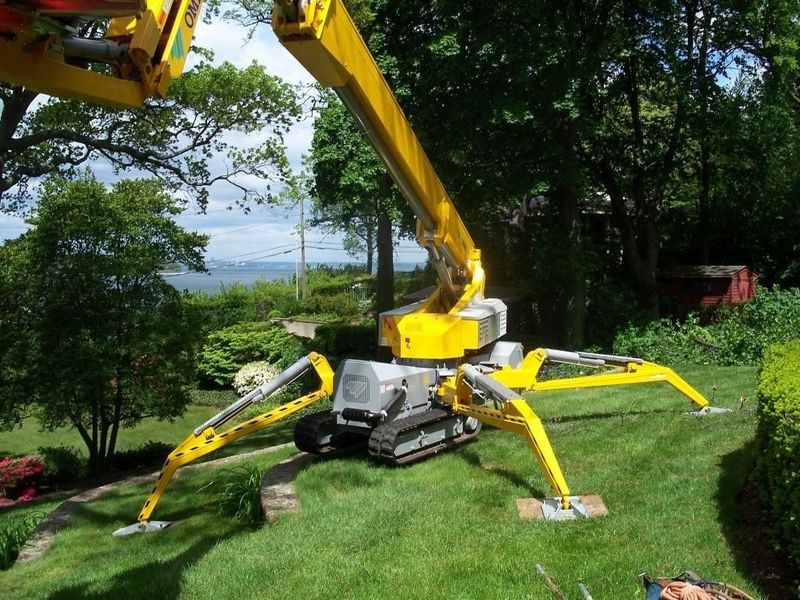

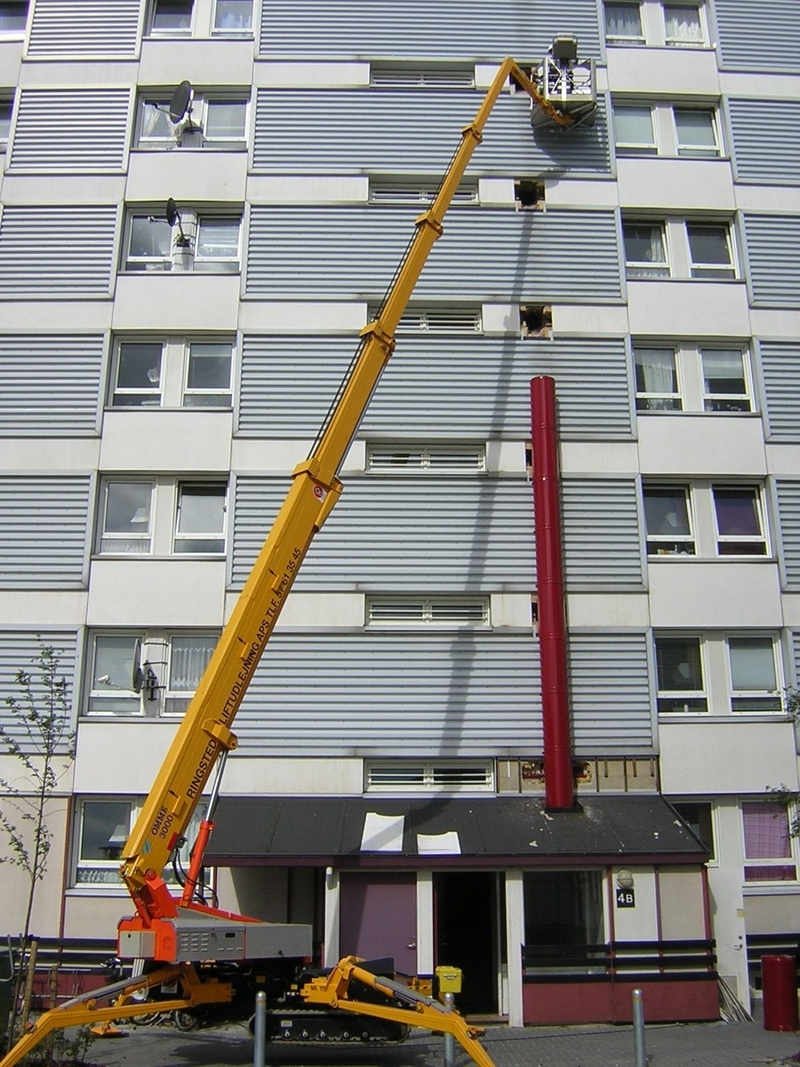

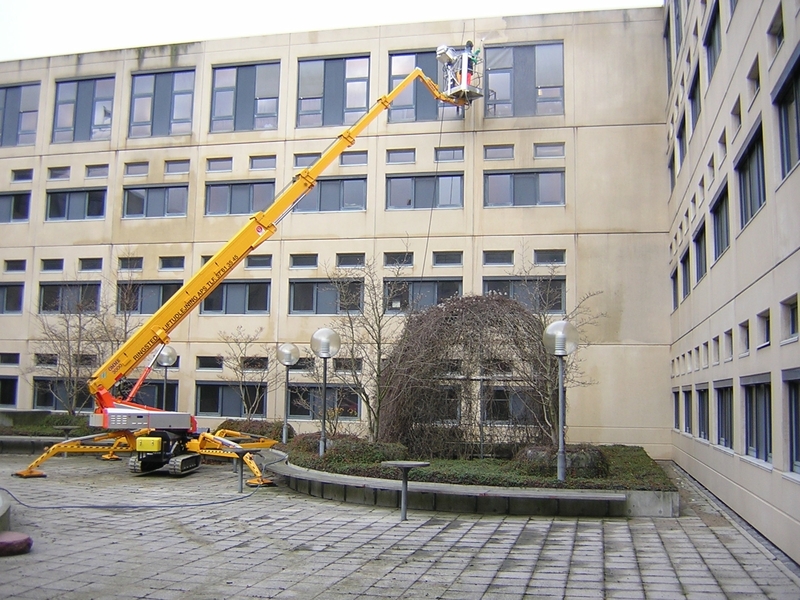

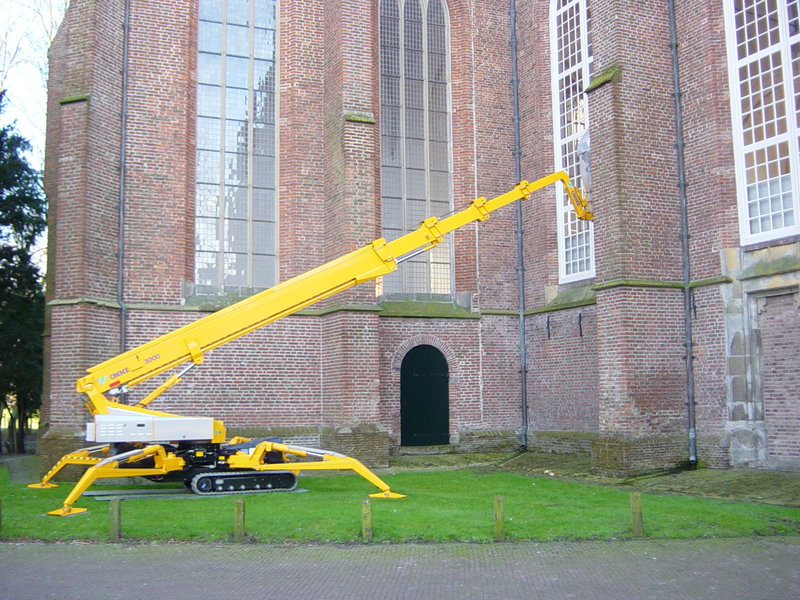

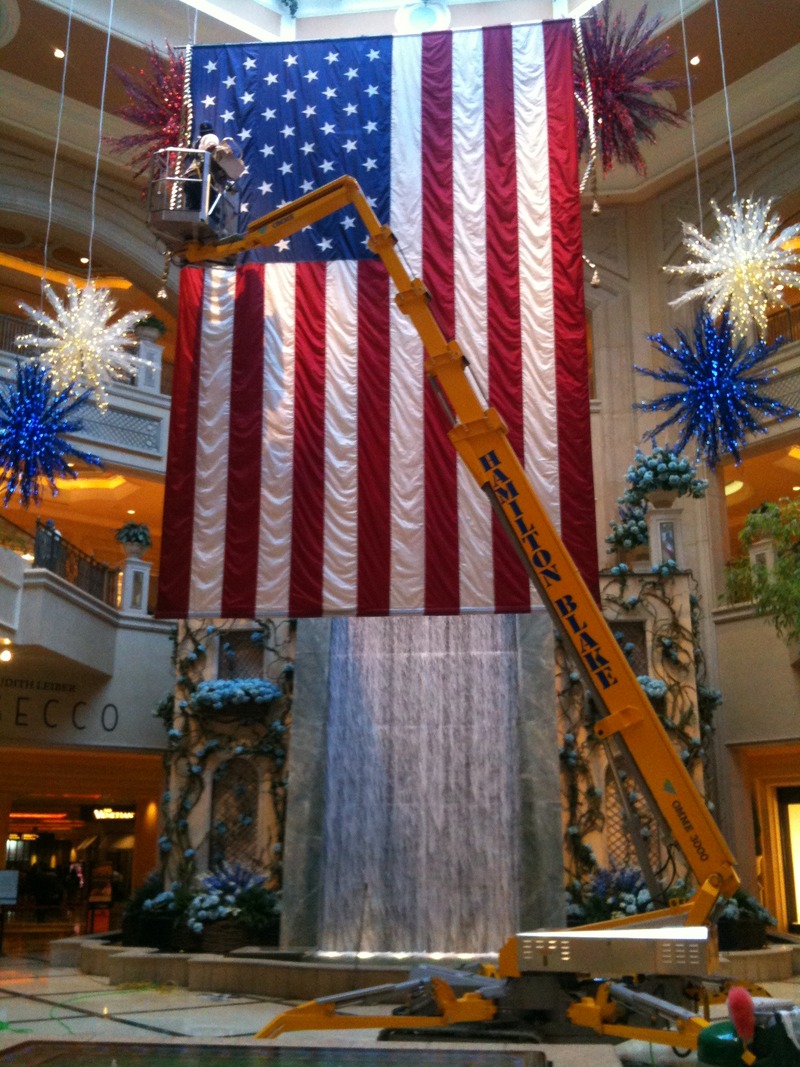

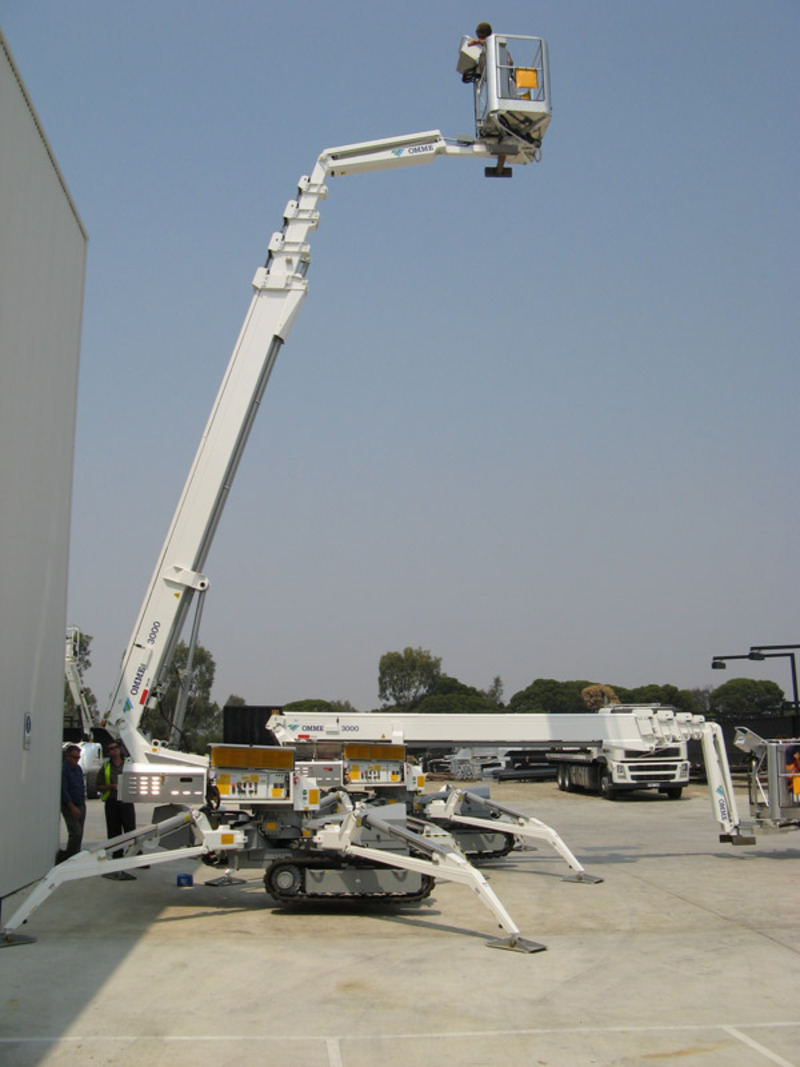

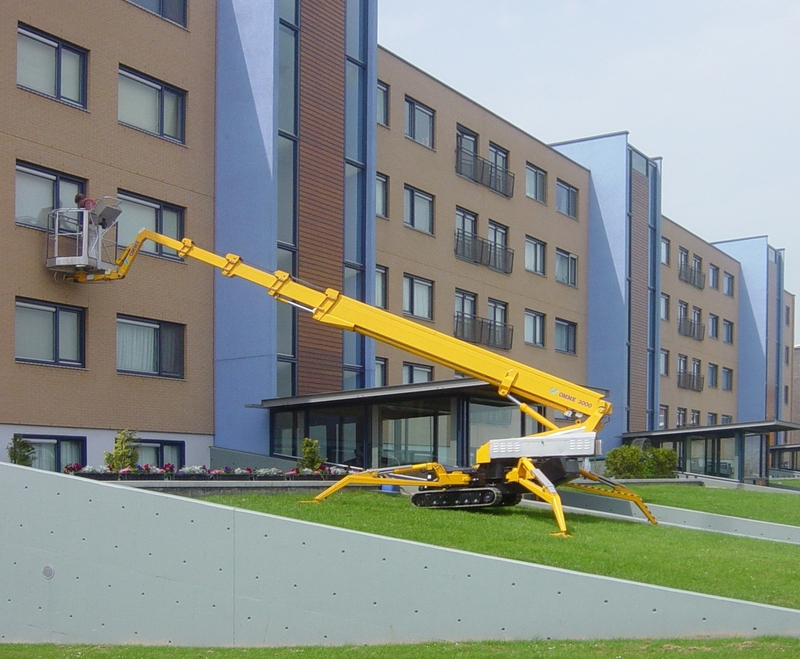

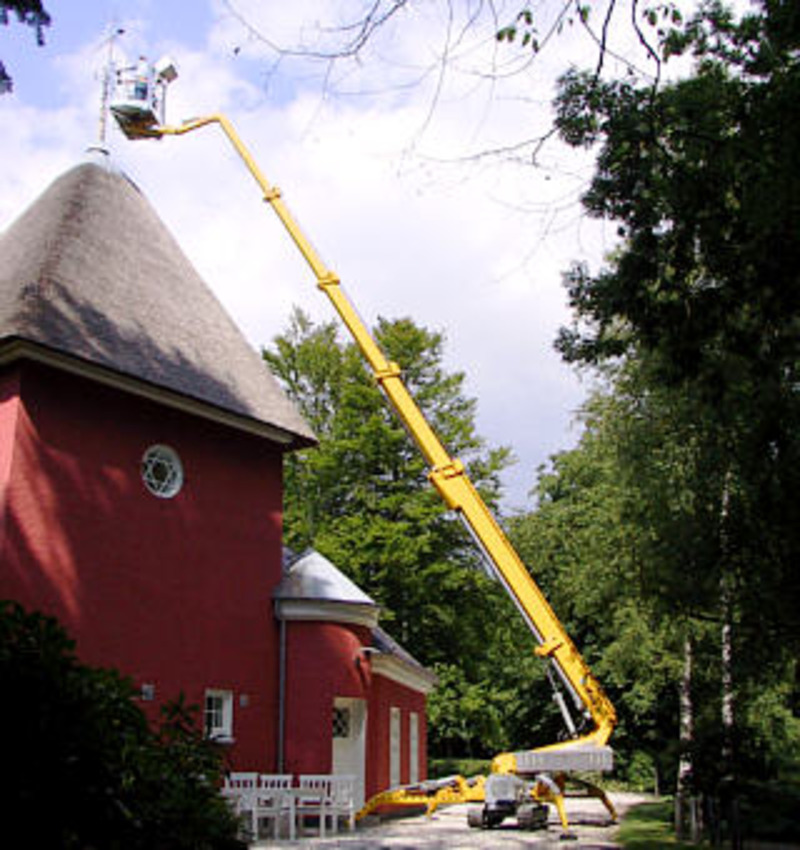

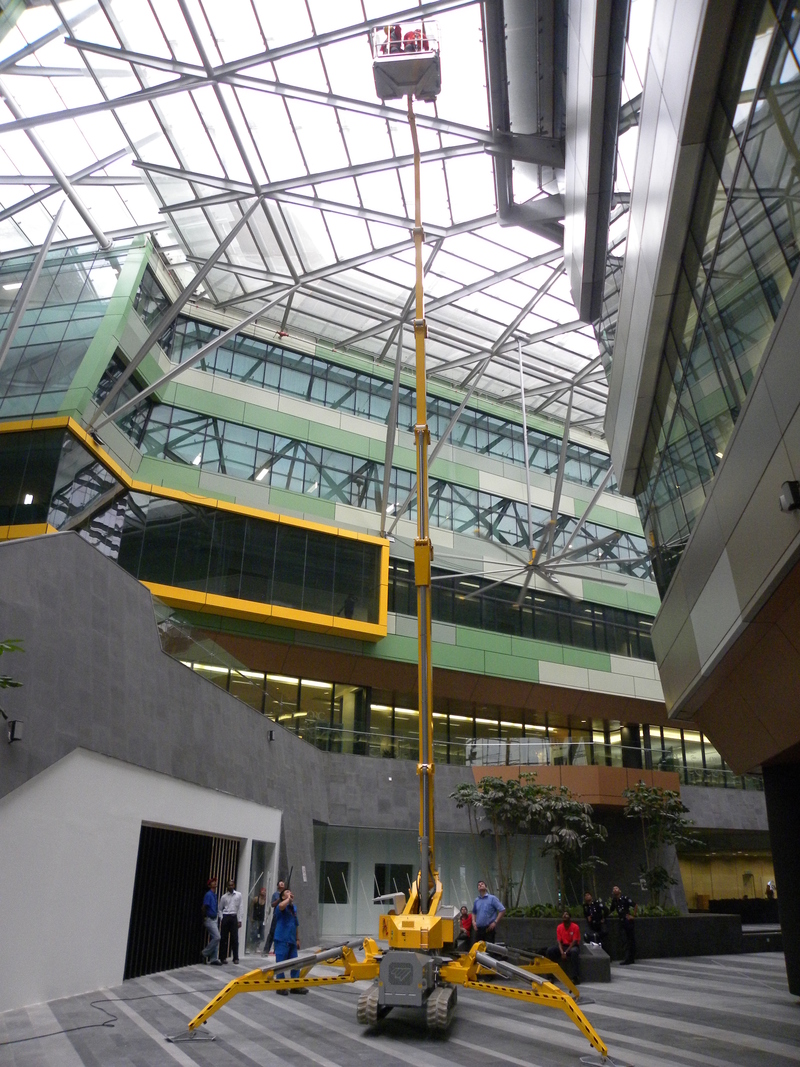

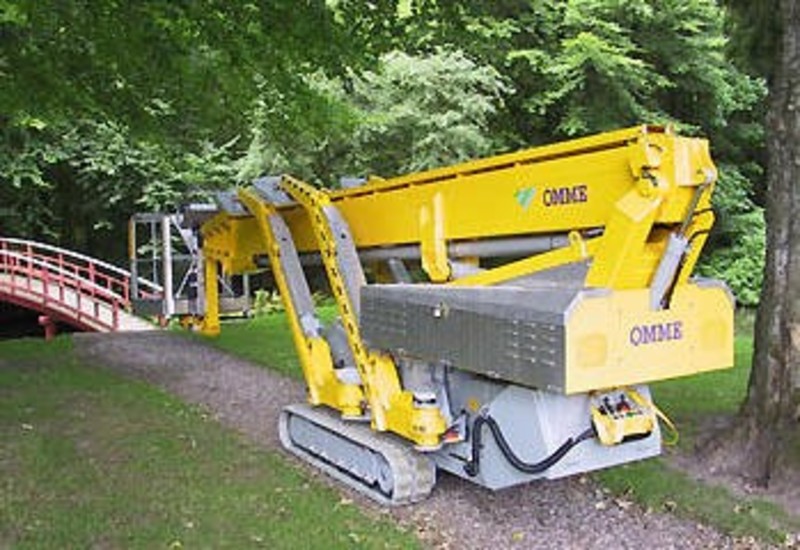

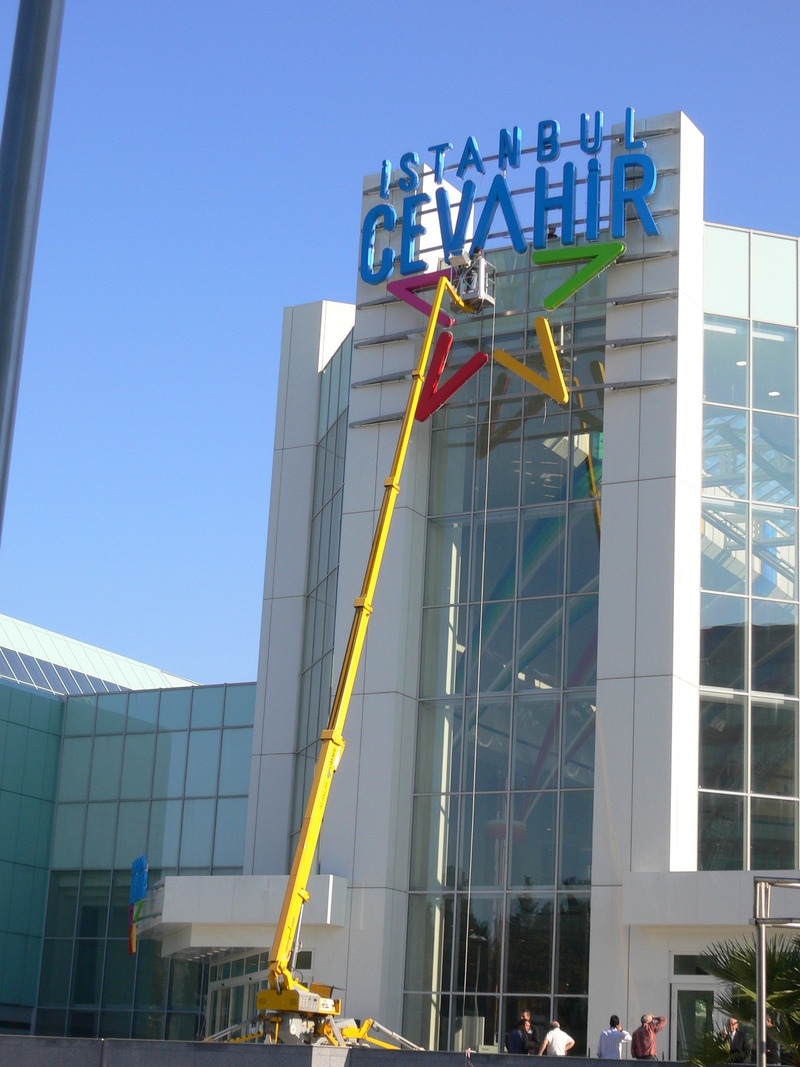

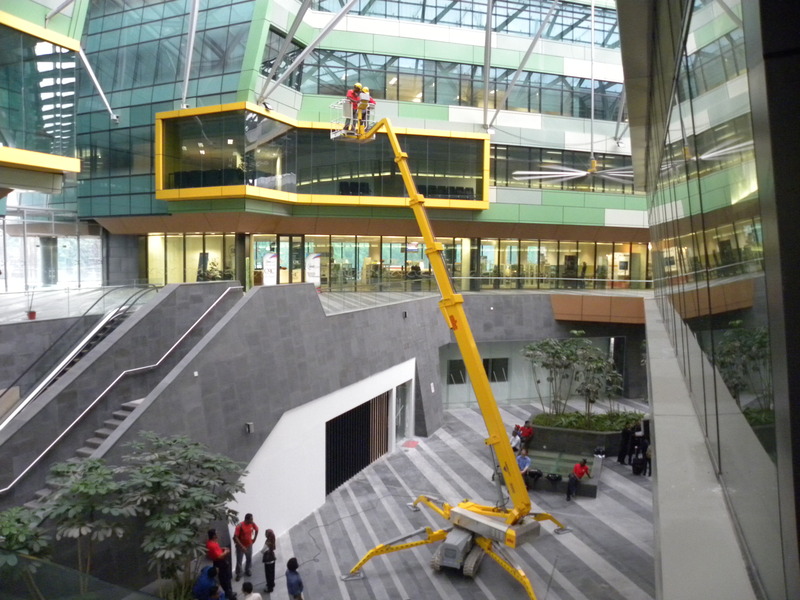

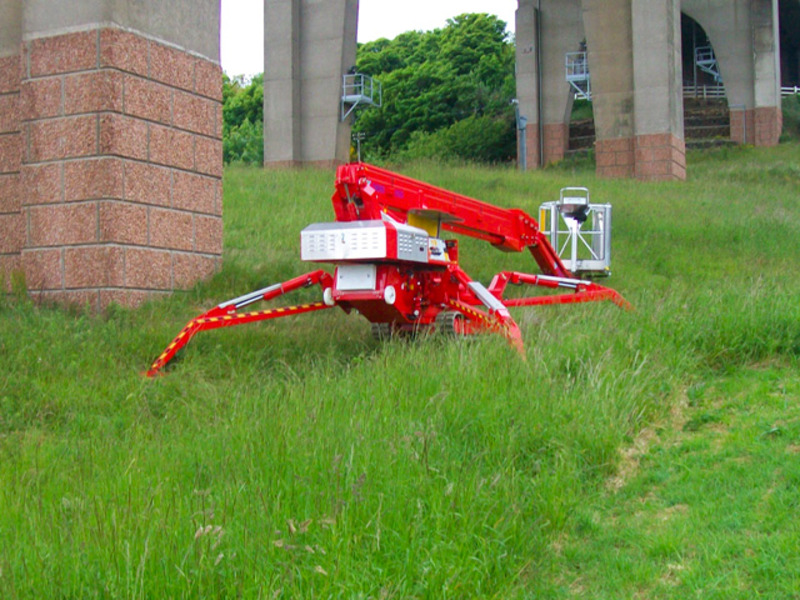

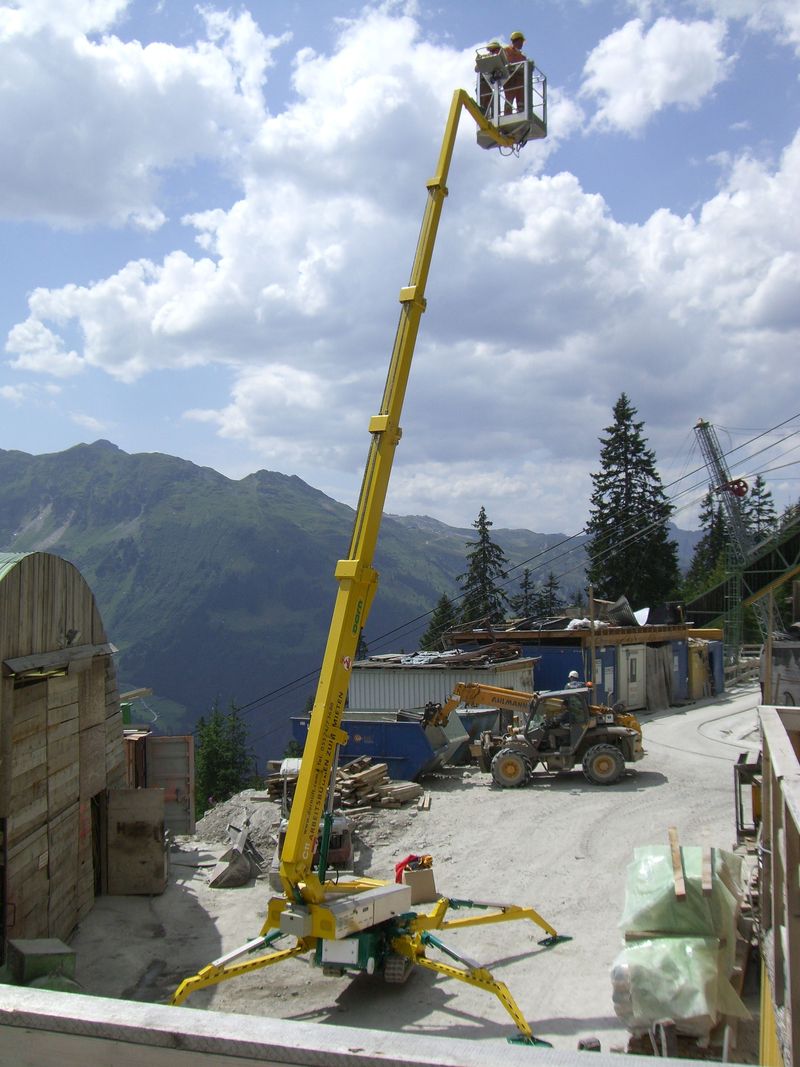

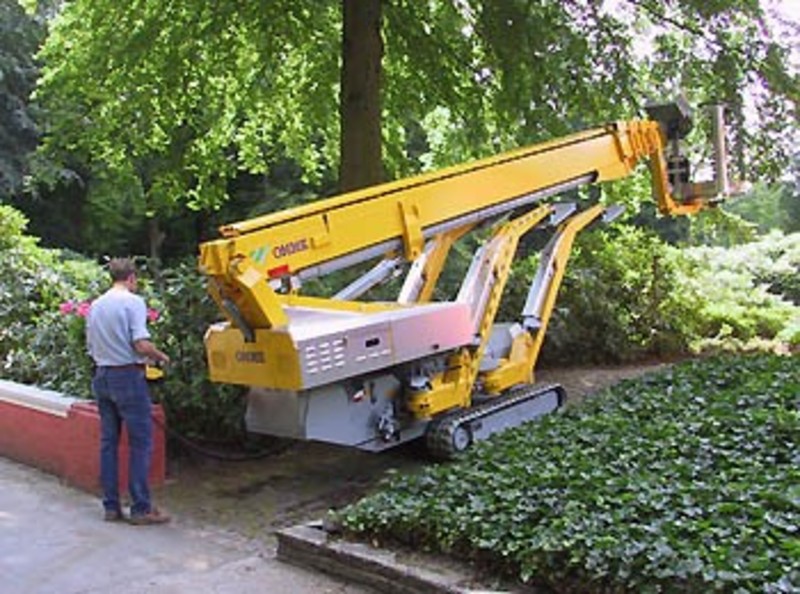

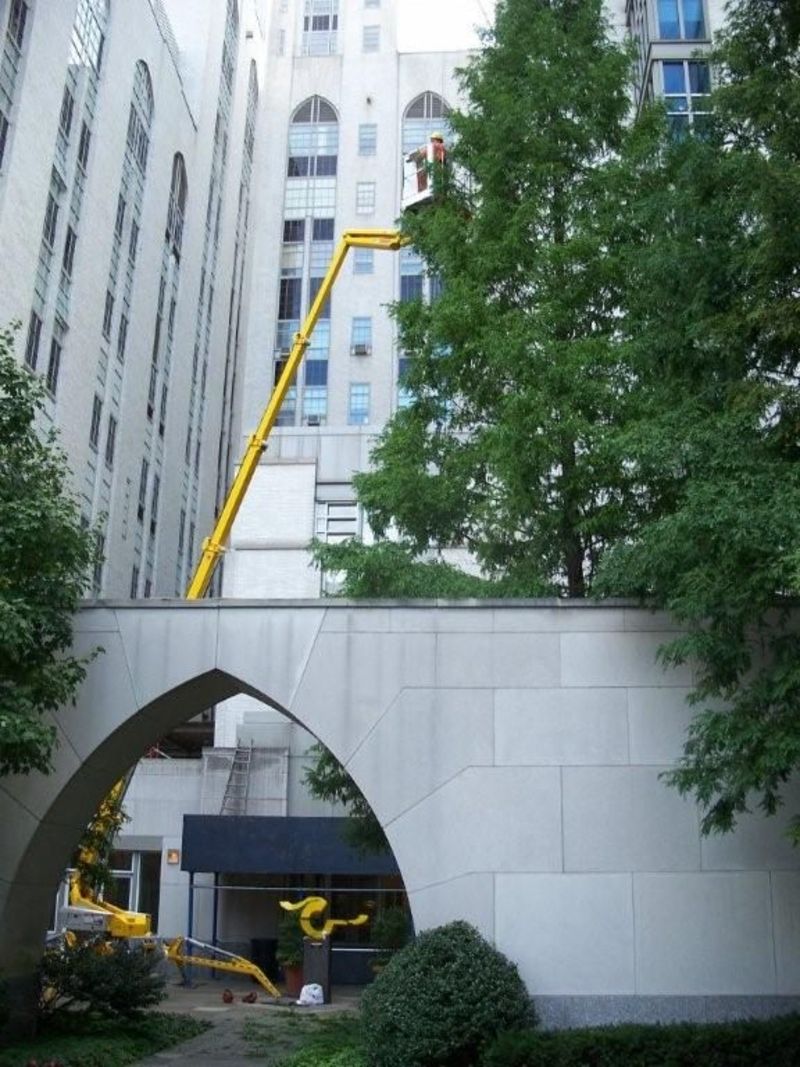

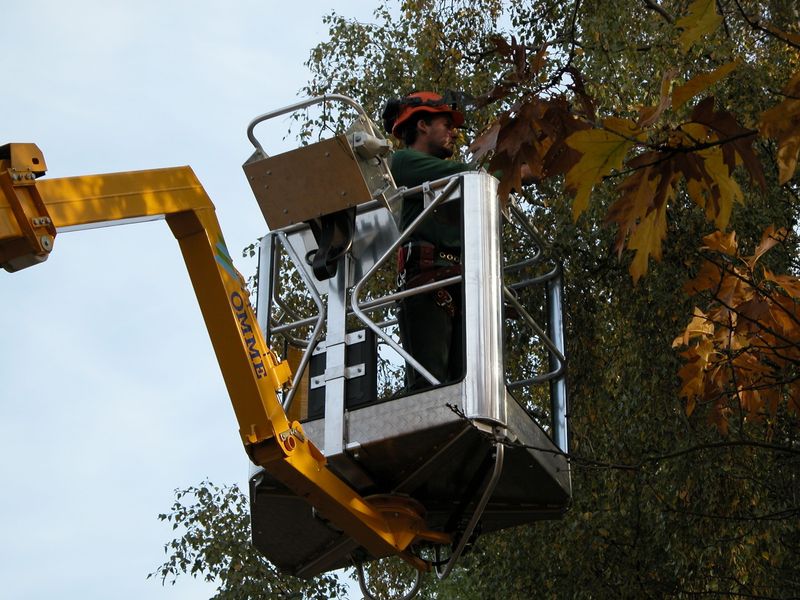

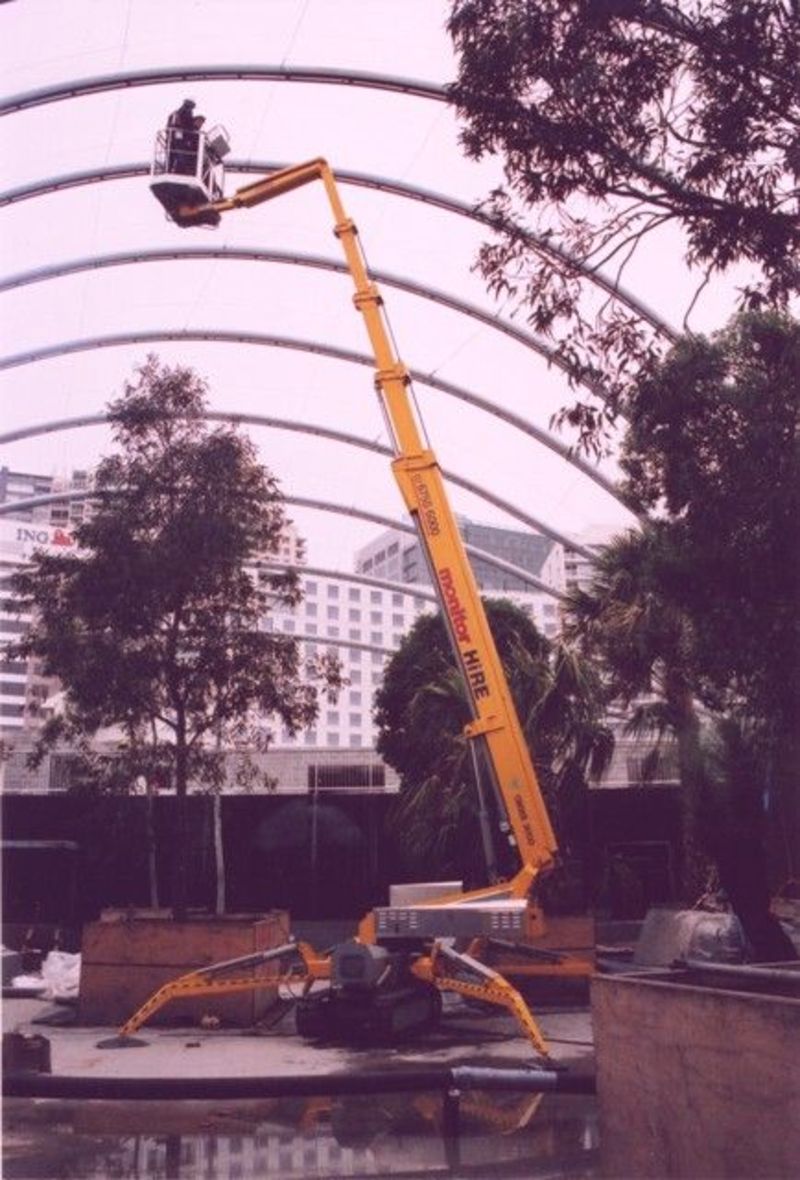

Crawlers at work:
3000 RB is powered by a heavy duty 24 v battery pack. In order to accomodate extreme and long term usage a transformer for direct mains connection is included. This type is especially suited for indoor operation.

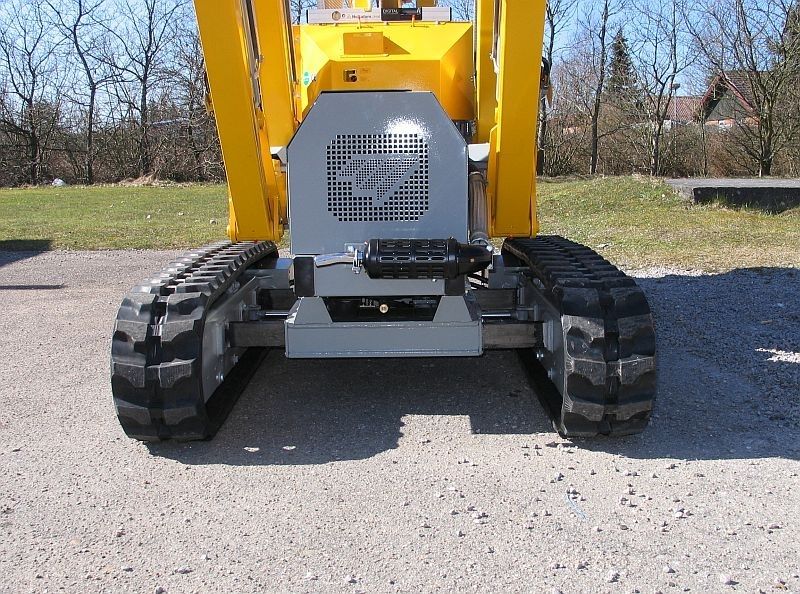

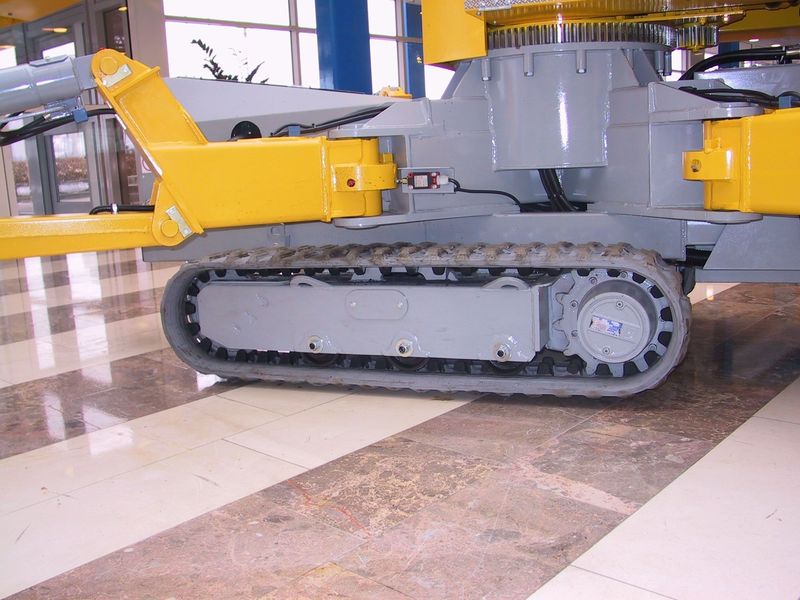

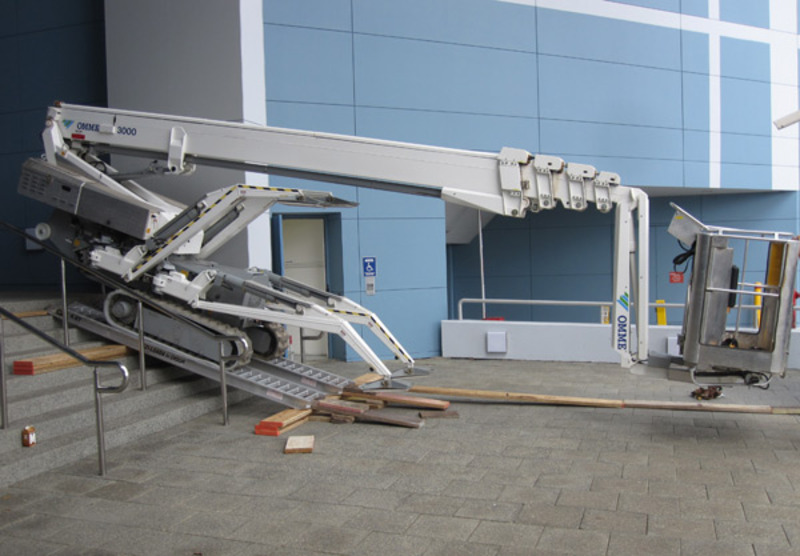

3000 RBD is a battery and diesel engine bi-energy unit. This type is therefore suited for both indoor and outdoor usage. The diesel power pack provides an incredible gradeability of remarkable 35%, equivalent to 19.3°, an environment where lift deployment is also possible. Underlining the general stability is the easy self-propulsion manoeuvrability across a 25% (14°) slope. Combined with the strong, non-skid crawler belts this lift type is indeed go anywhere access.
Technical features |
||
---|---|---|

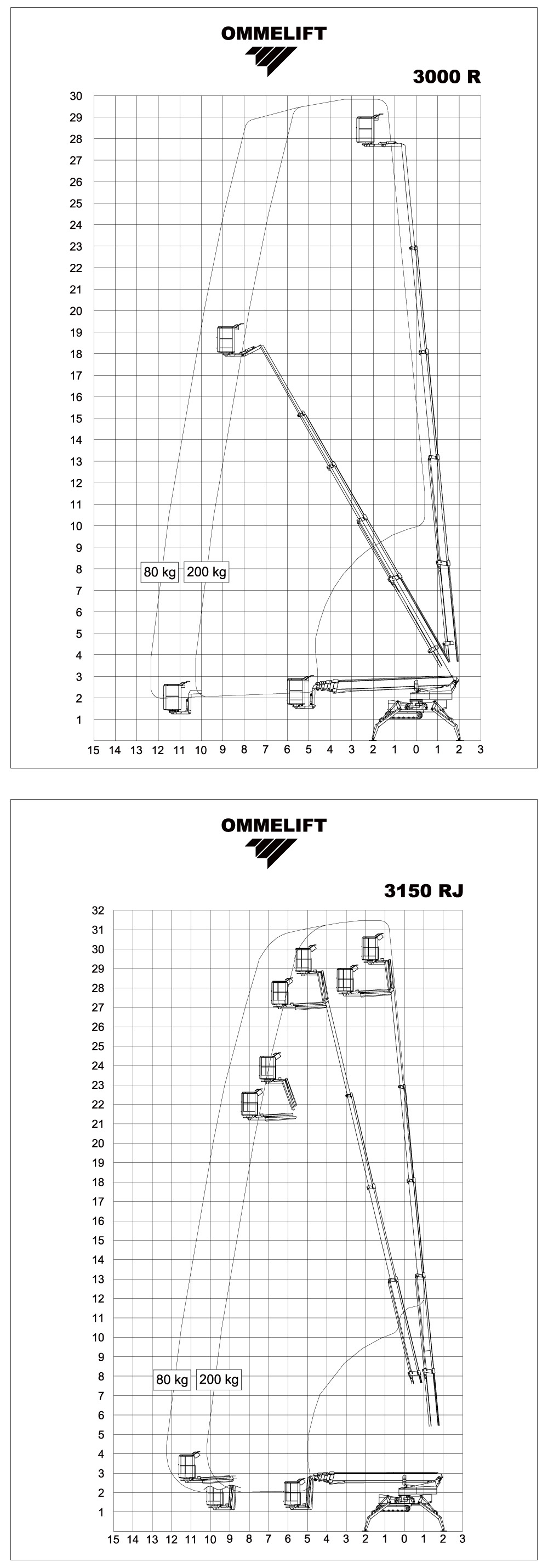

Max. working height | 29.7 m (31.1 m *3150 RJ - flyjib) | |
Max. outreach | 12.6 m | |
Basket size | 1.25x0.8x1.1 m | |
Travelling length | 8.03/7.28 m | |
Travelling height | 1.99 m | |
Travelling width | 1.10 m | |
Operational width | 4.60 / 3.75 m | |
Rotation ± | 355° | |
Max. basket load | 200 kg | |
Total weight approx | 3900 kg | |
Turntable basket ± | 41° | |
Battery | 24 V 400 Ah/5h | |
Charger | 24 V 30 A | |
Transformer | 24 V 50 A | |
Generator | 24 V 22 A *3000 RBD | |
Gradeability across slope up to | 25 % 14.0 ° | |
Gradeability up and down slope u...p to | 35 % 19.3 ° | |
Deployment ability procent | 40 % 21.8 ° | |
Number of supporting rollers | 4 | |
Diesel motor | 14 kW 18.8 hp *3000 RBD | |
Adjustable tracks | Option | |
Automatic stabilizer levelling s...down | Option | |
Flash lights - crawler | Option | |
Non-marking tracks | Option | |
Spotlight in basket O16 | Option | |
Transformer - crawler | Option | |
Wireless remote control (drive o...nly) | Option | |
Jib-movable | Option |
