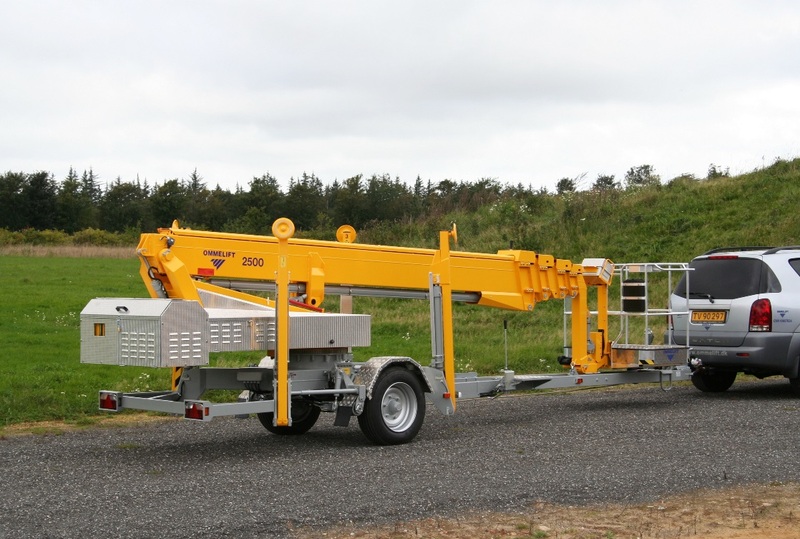

2500 E

* Click on the image to view
Convenient and time saving

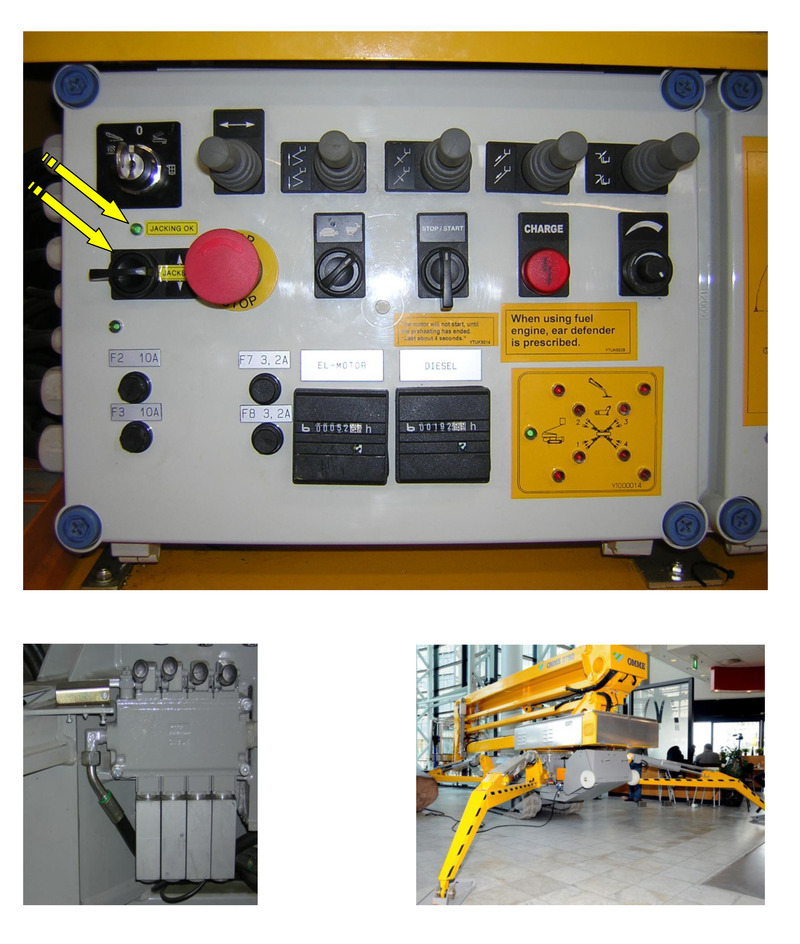

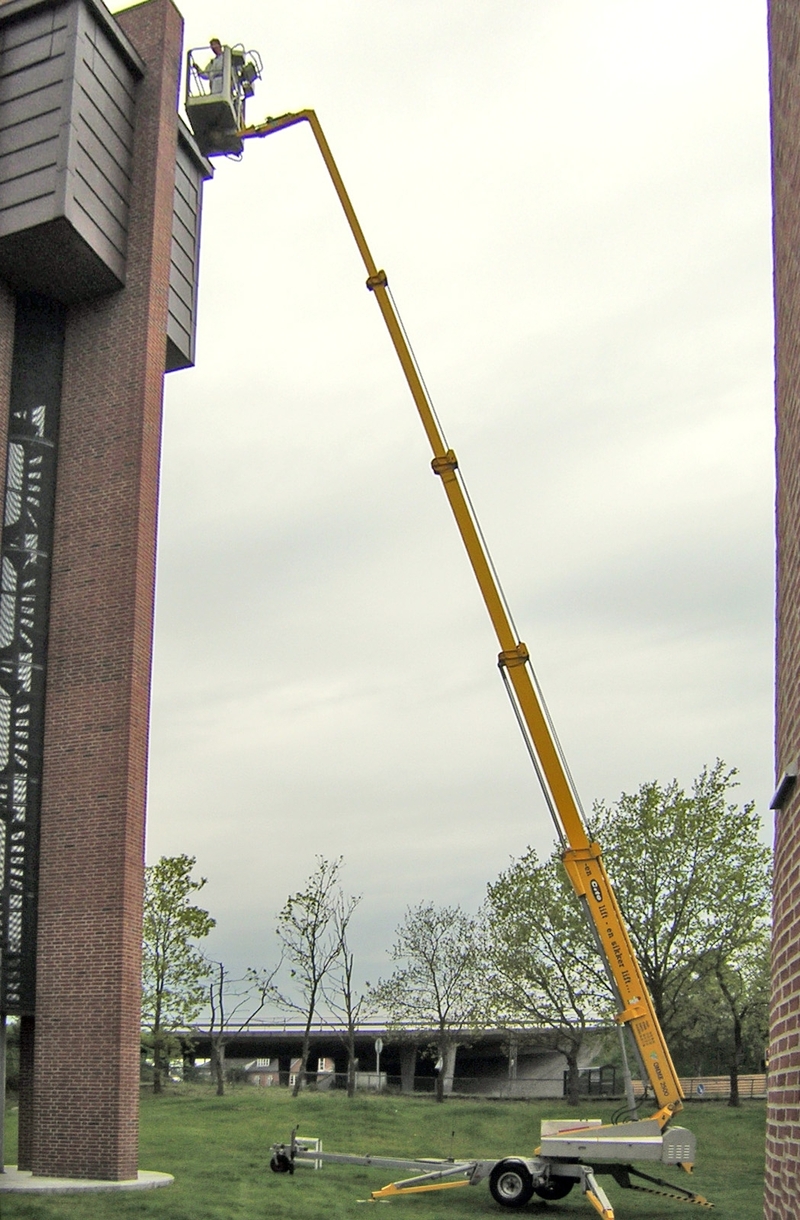

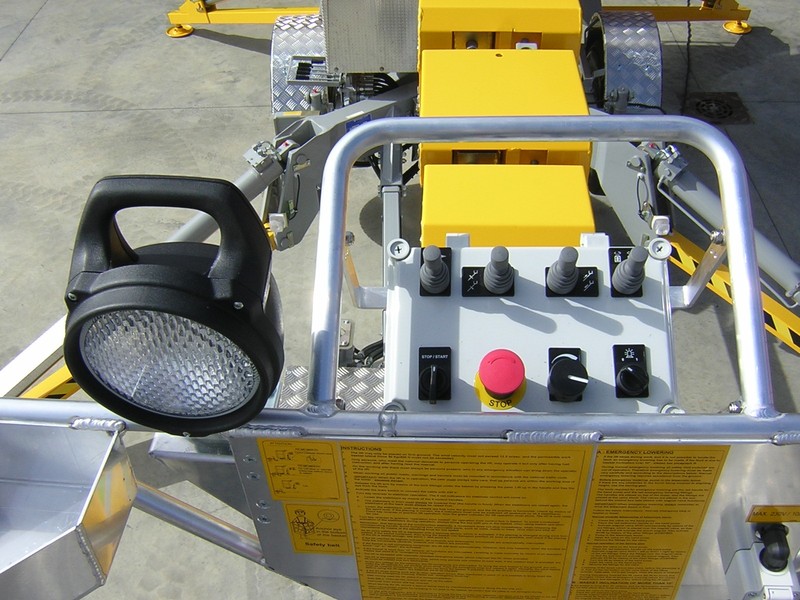

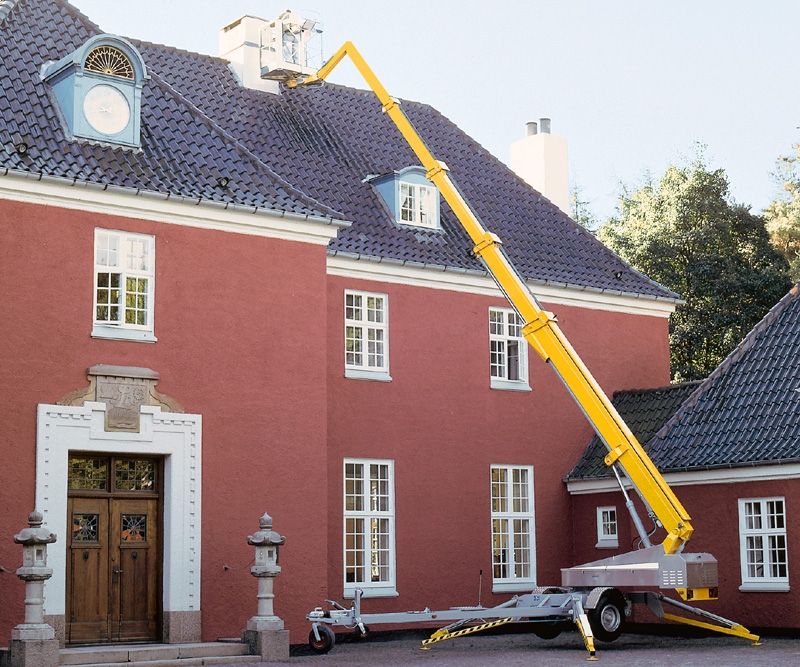

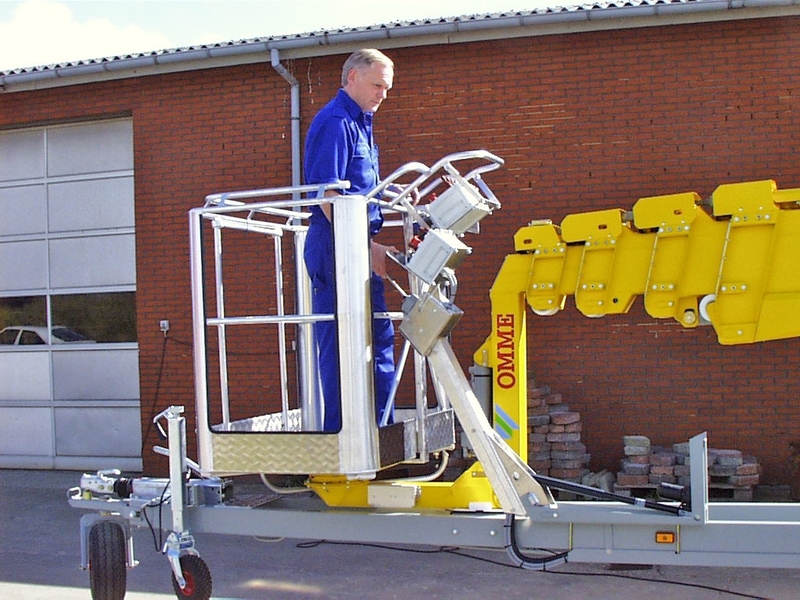

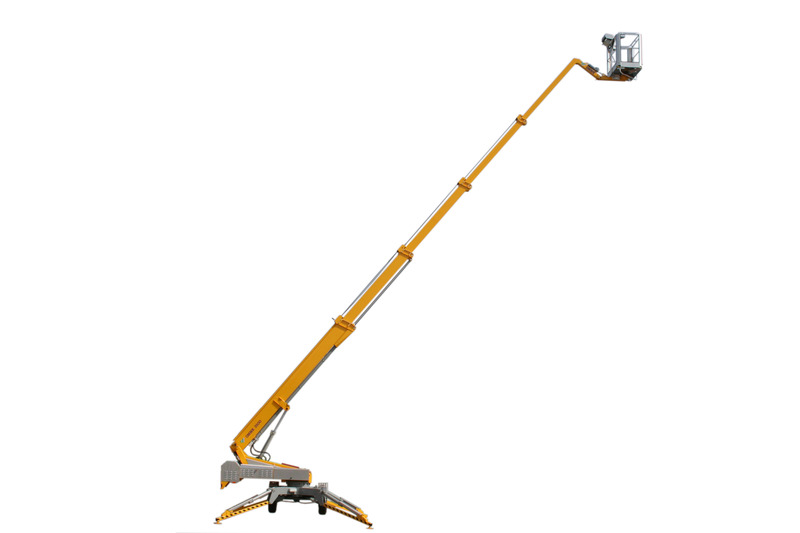

2500 E, 2500 EB and 2500 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls to ground and basket. Design features include a basket mounting that forms a "fly" boom mounted to the top boom section and gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being shorter in travel length than most machines of this type, the 2500 E-series allows improved manoeuvrability and is particularly suited when mounted on to a chassis cab.
2500 E is main powered 230 V/16 A and is especially suited, where continuous or extended operation is required.

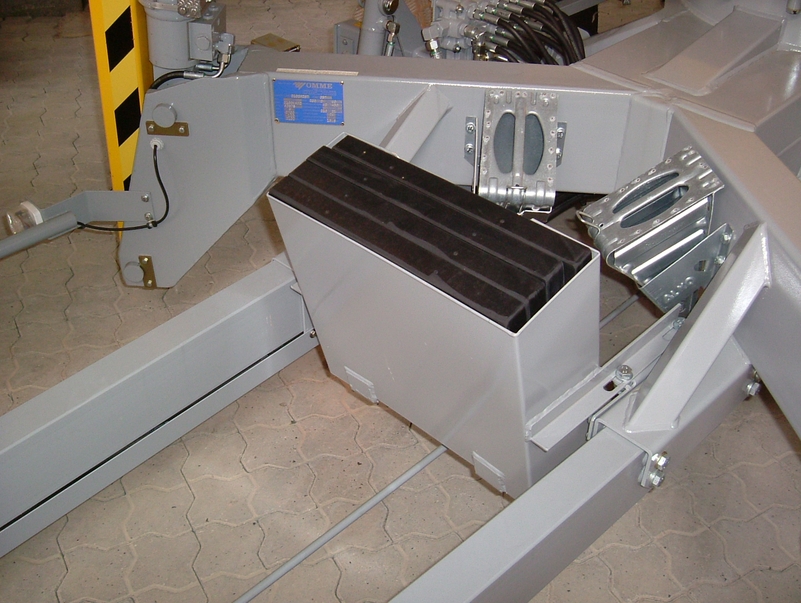

2500 EB is powered by a heavy duty 24 V battery pack with built-in charger capable of charging the batteries whilst the platform is in use. 2500 EB is especially suited for jobs, without mains access.
Technical features |
||
---|---|---|

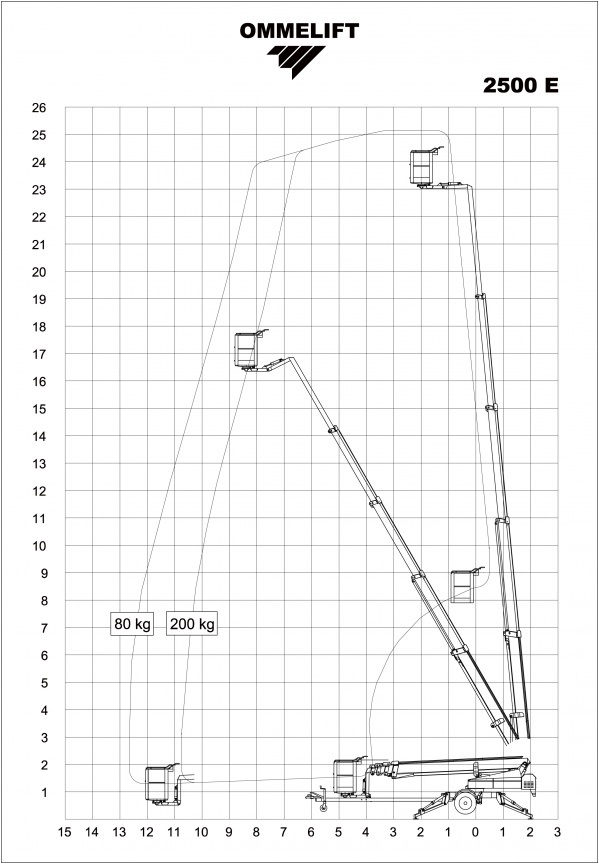

Max. working height | 25.10 m | |
Max. outreach | 12.60 m | |
Basket size | 1.25x 0.8x1.1 m | |

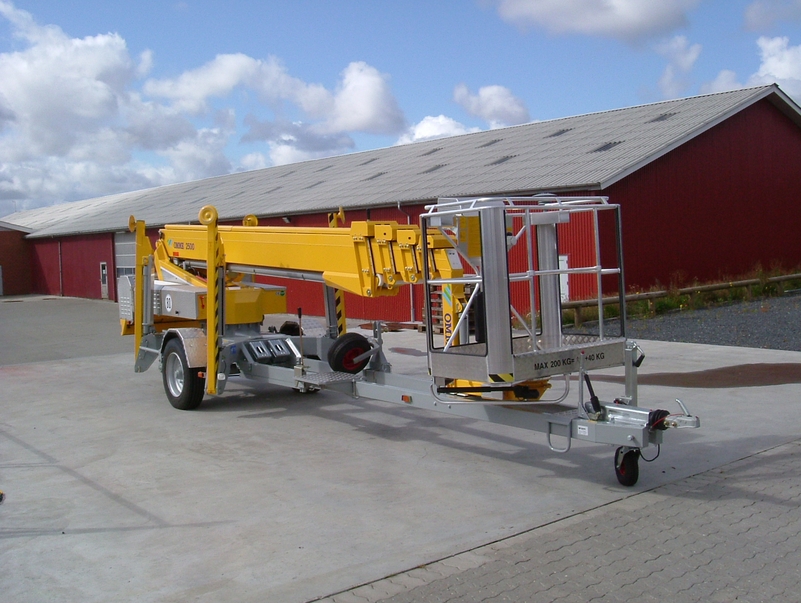

Travelling length | 8.40 m | |
Travelling height | 2.10 m | |
Travelling width | 1.70 m | |
Operational width | 4.25 m | |
Power supply | 230 V 16 A | |
Rotation ± | 400° | |
Max. basket load | 200 kg | |
Total weight incl. propulsion | 3000 kg | |
Turntable basket ± | 41° | |
Battery | 24 V 200 Ah/5h *2500EB | |
Charger | 24 V 30 A *2500EB | |
Flash lights | Option | |

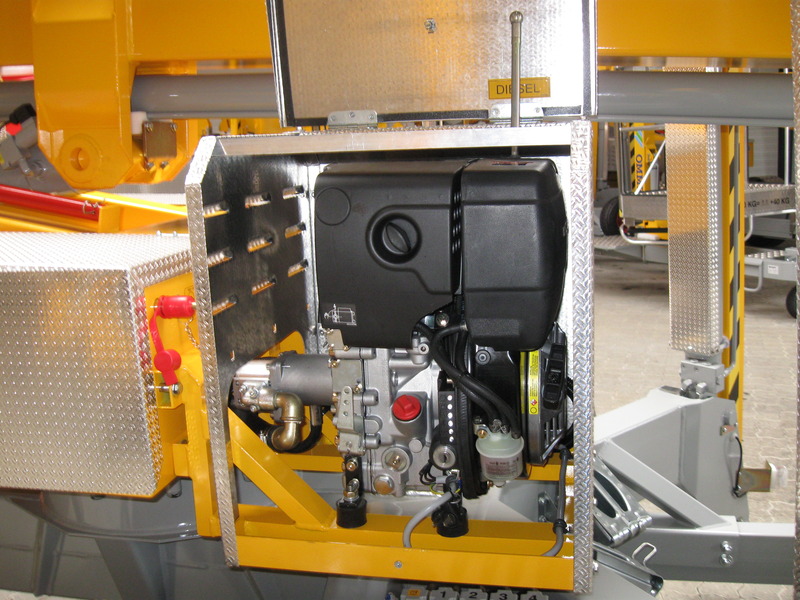

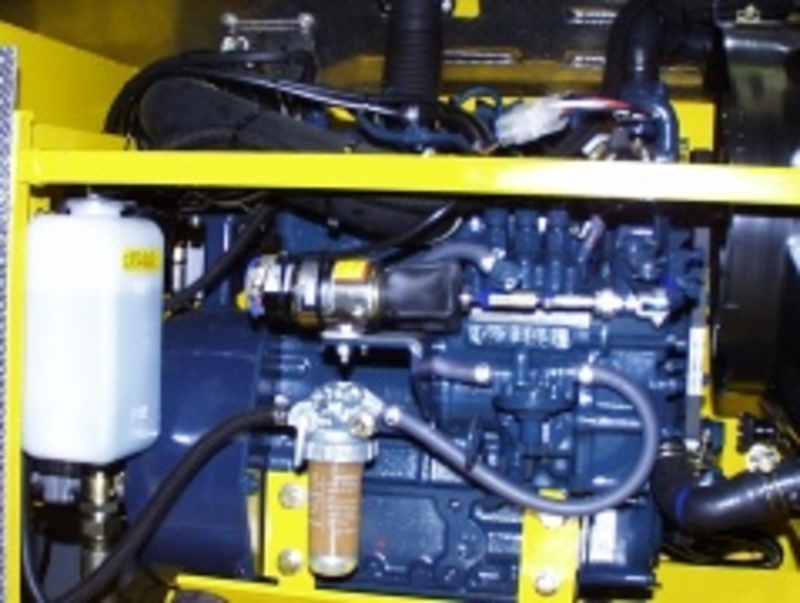

Hatz diesel engine with oil pump | Option | |

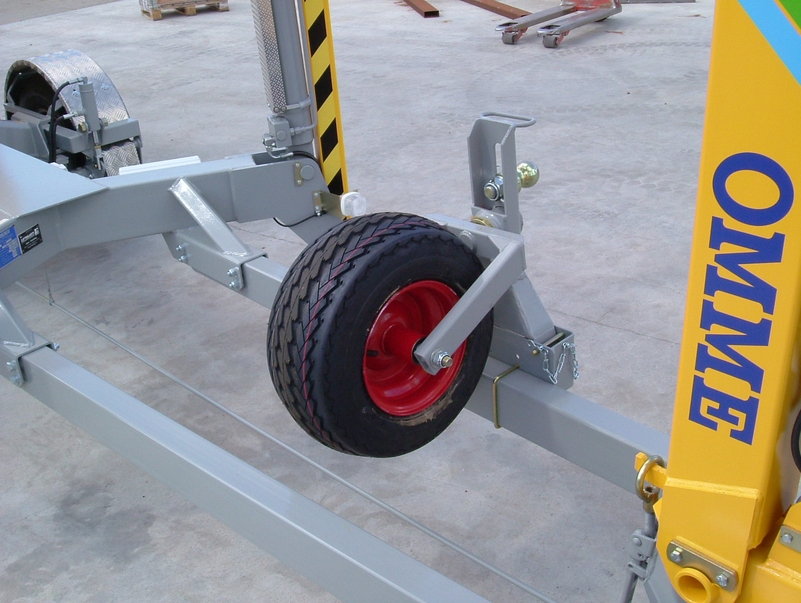

Holder for nose wheel | Option | |

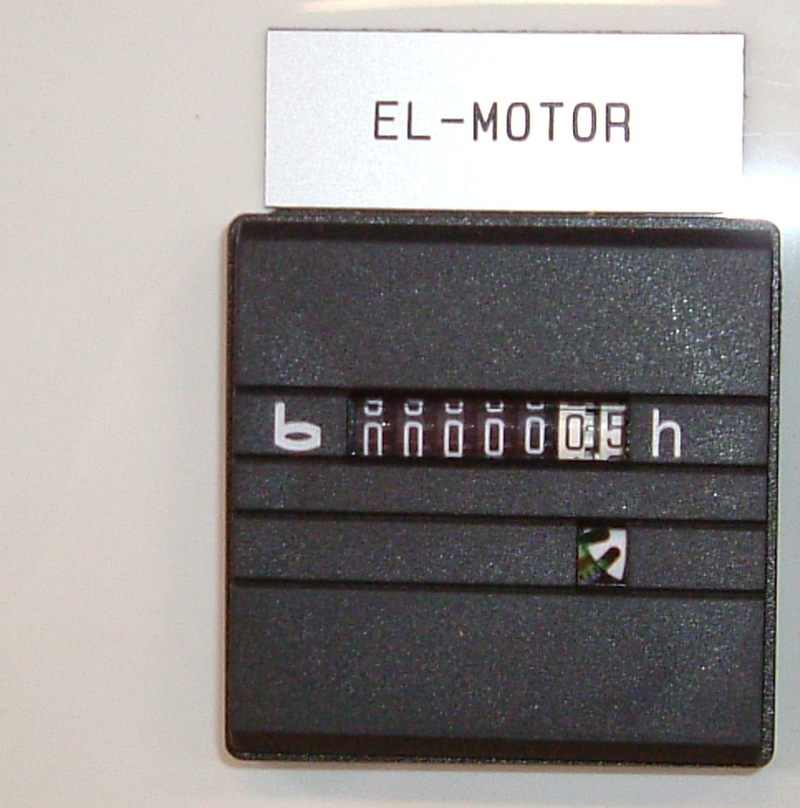

Hour meter | Option | |

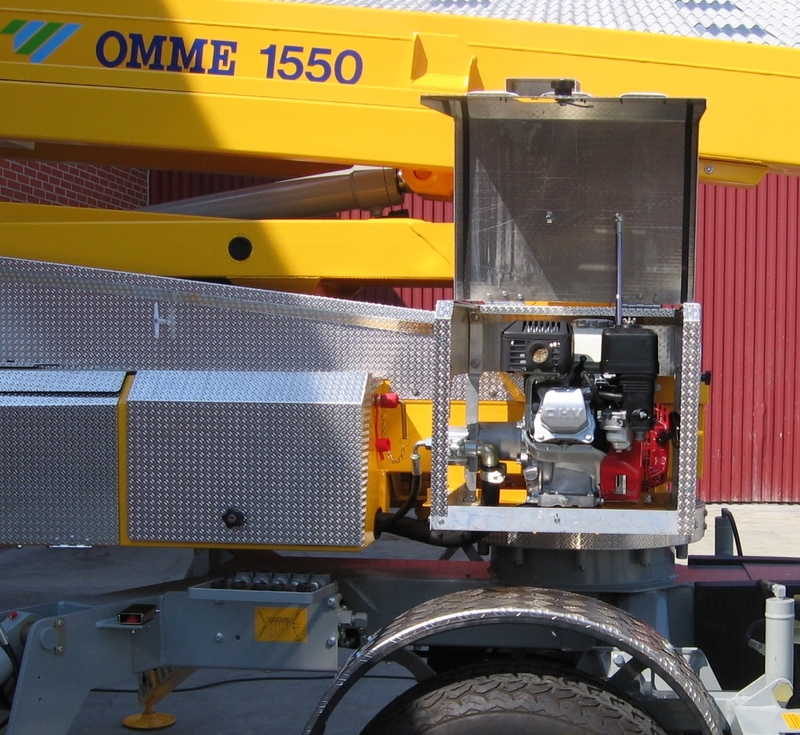

Petrol engine with oil pump | Option | |

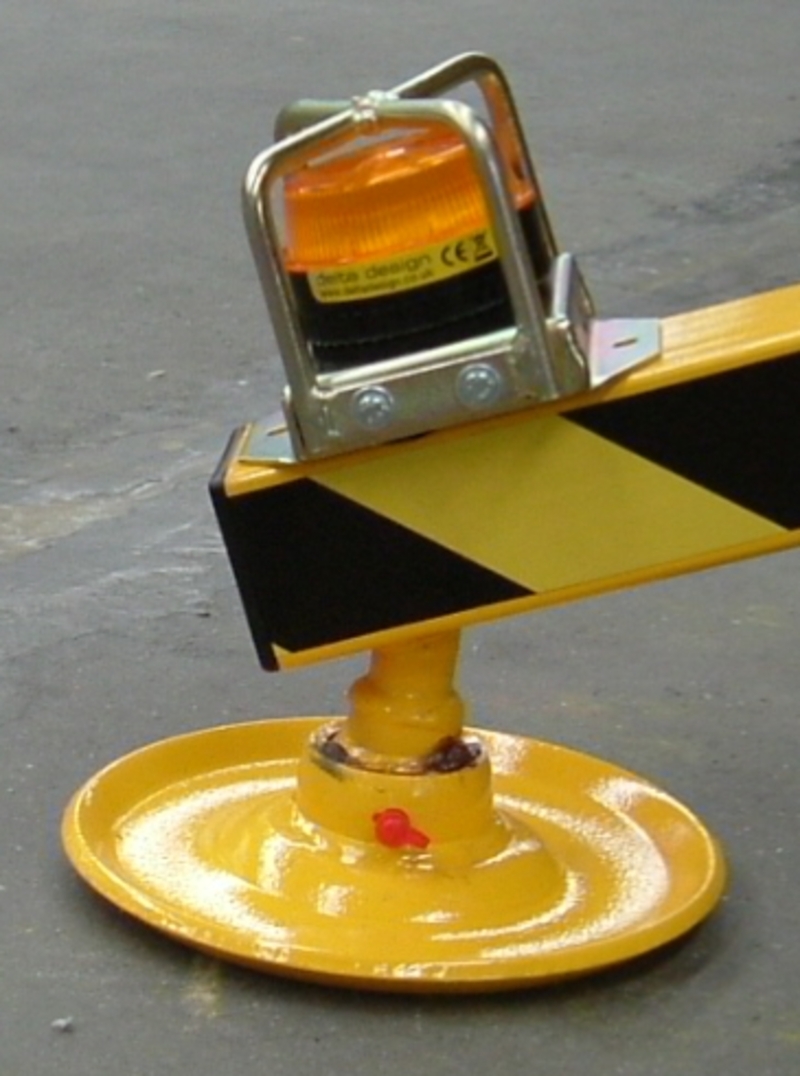

Plates for stabilizer | Option | |
Special colour | Option | |
Spotlight in basket O16 | Option | |

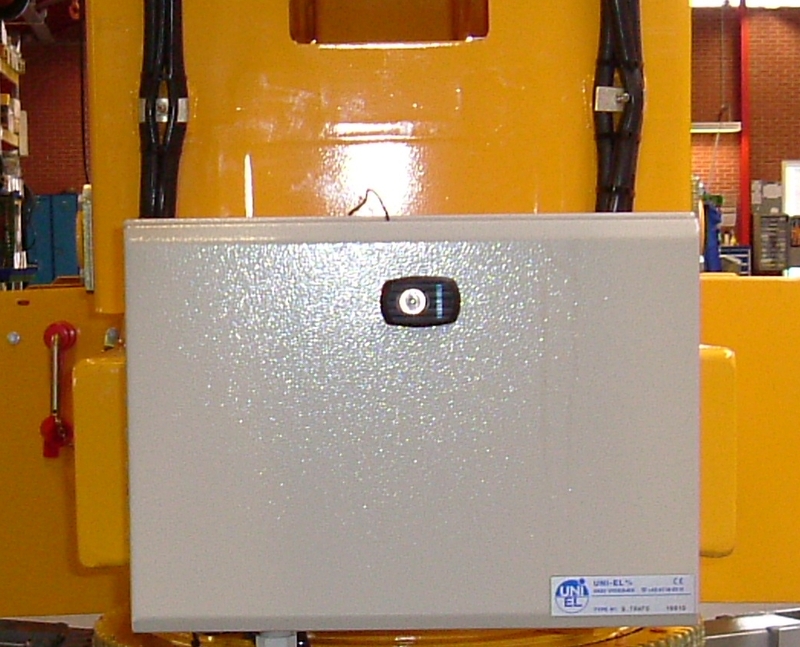

Transformer | Option |
