Overview - 29 m

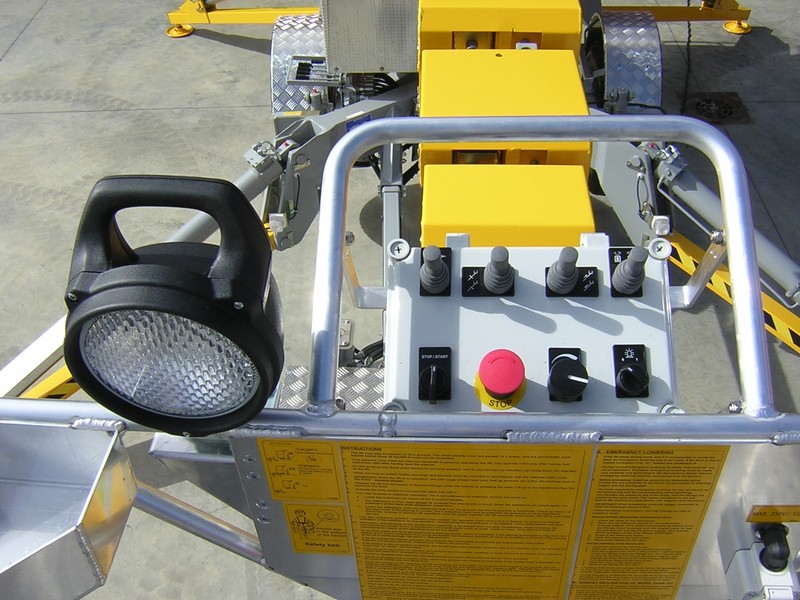

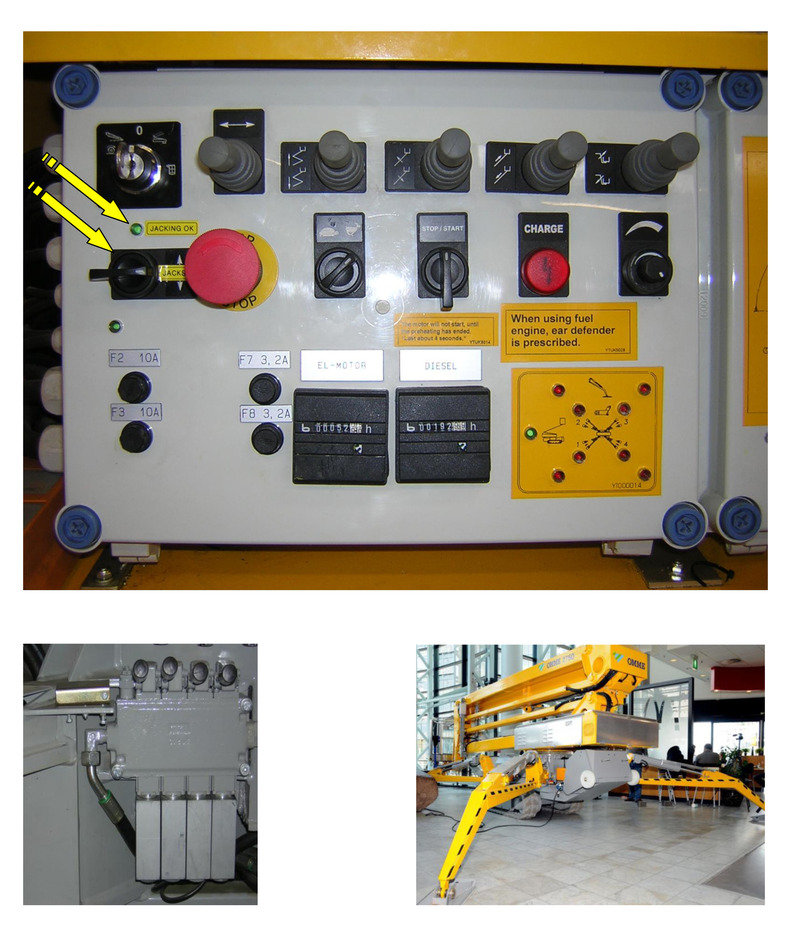

2900 E, 2900 EB and 2900 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls from ground and basket. Design features include a basket mounting that forms a "fly" boom mounted to the top boom section and gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being shorter in travel length than most machines of this type, the
2900 E-series allows improved manoeuvrability and is particularly suited when mounted on to a chassis cab.

2900 E is main powered 230 V/16 A and is especially suitable, where continuous or extended operation is required.

2900 EB is powered by a heavy duty 24 V battery pack with built-in charger capable of charging the batteries whilst the platform is in use. 2900 EB is especially suited for jobs, without mains access.


If you are interested please press Contact Form --> order


Technical features

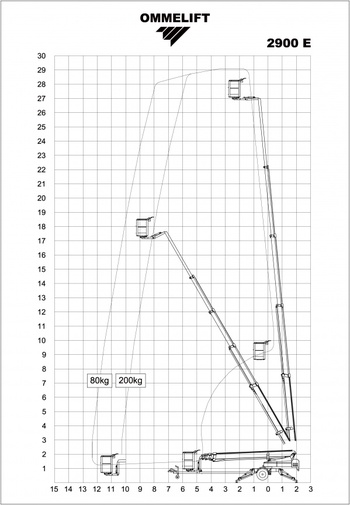

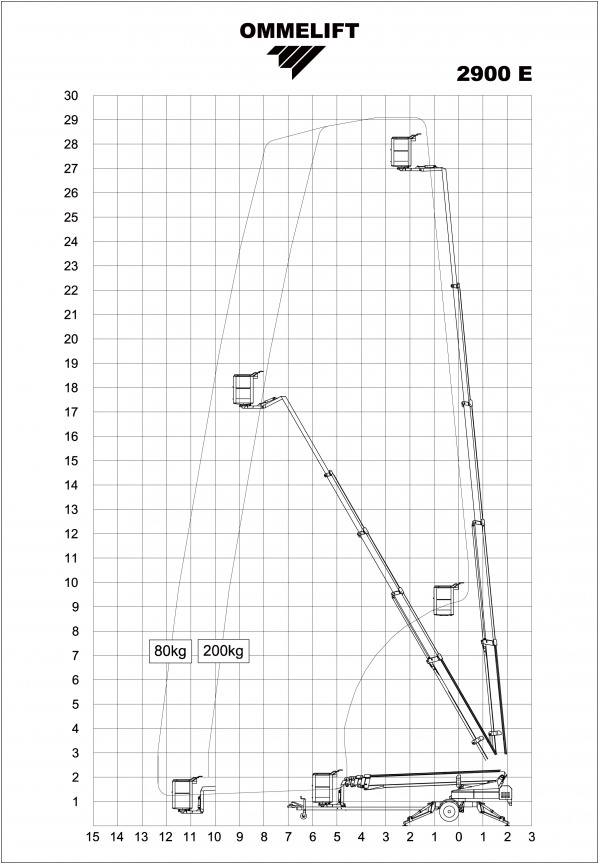

Max. working height 29 m
Max. outreach 12.3 m
Basket size 1.25x0.8x1.1 m
Travelling length 9.20 m
Travelling height 2.10 m
Travelling width 1.70 m
Operational width 4.25 m
Power supply 230 V 16 A
Rotation ± 400°
Max. basket load 200 kg
Total weight incl. propulsion 3400 kg
Turntable basket ± 41°

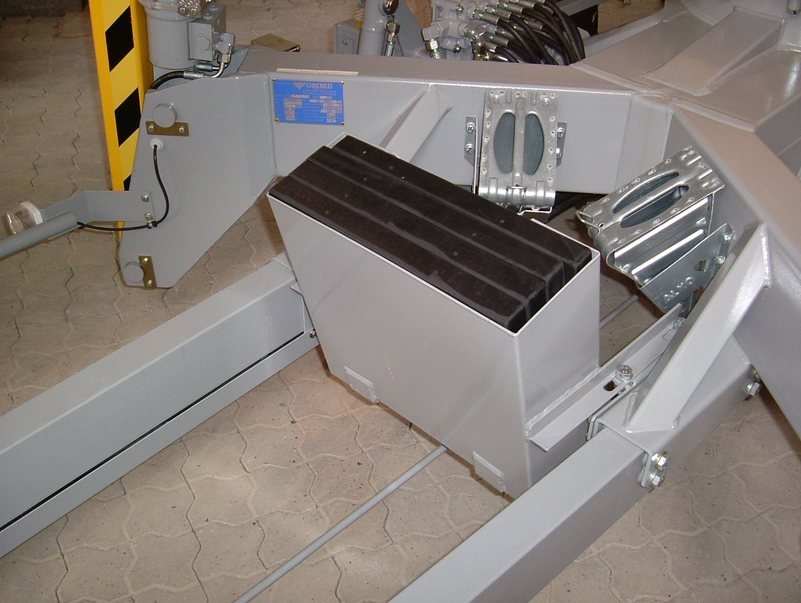

Battery 24 V 200 Ah/5h *2900E
Charger 24 V 30 A *2900E

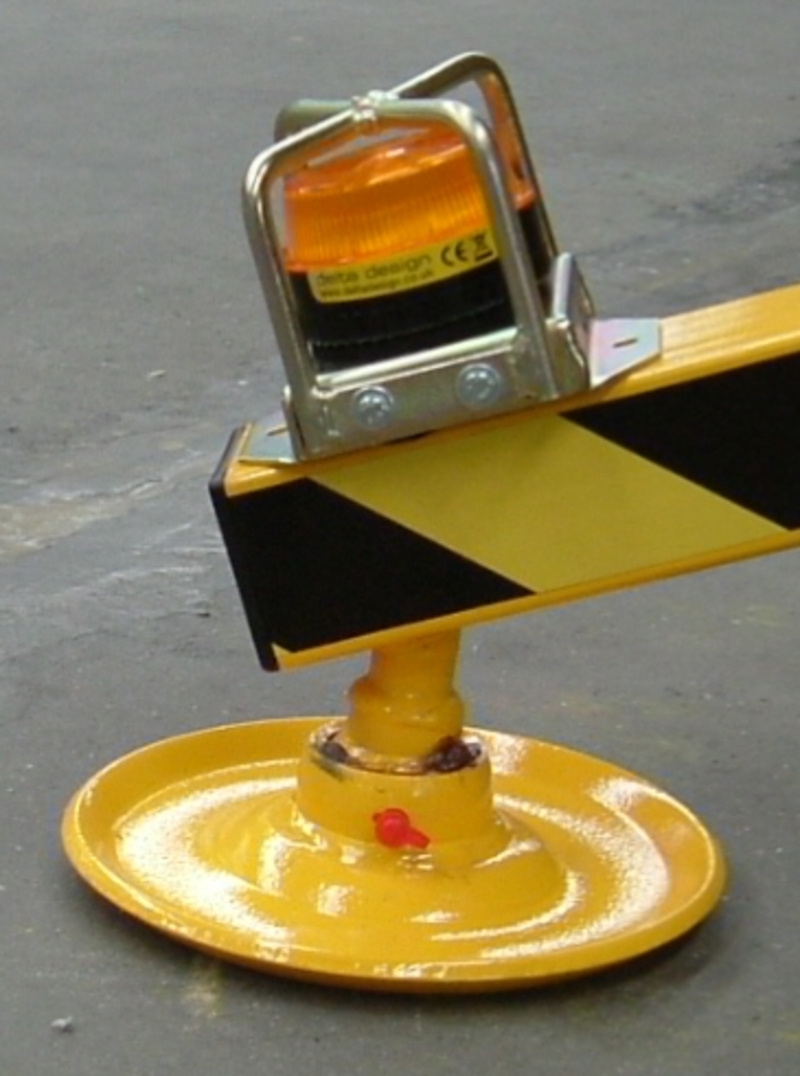

Flash lights Option

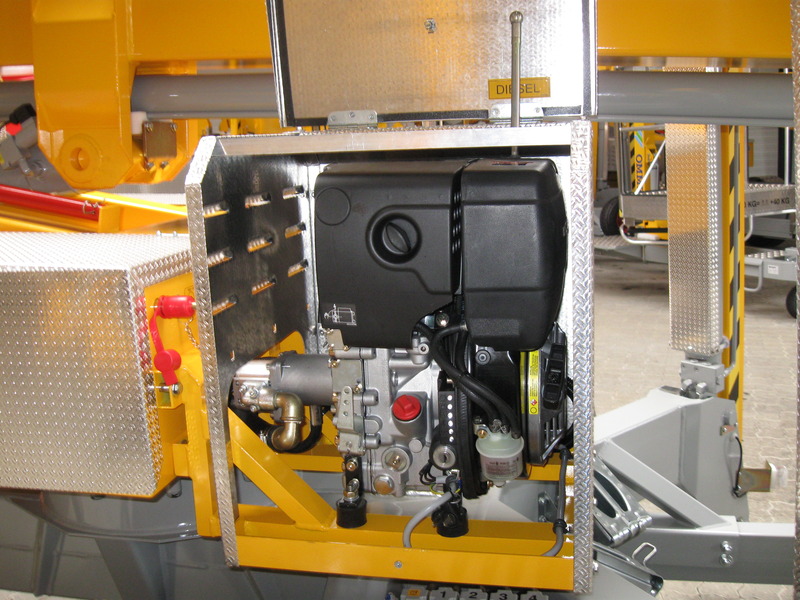

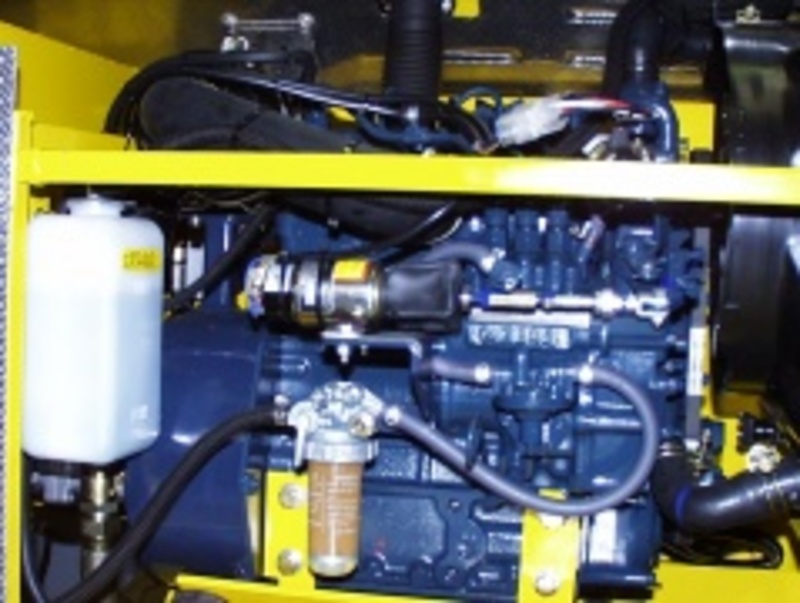

Hatz diesel engine with oil pump Option

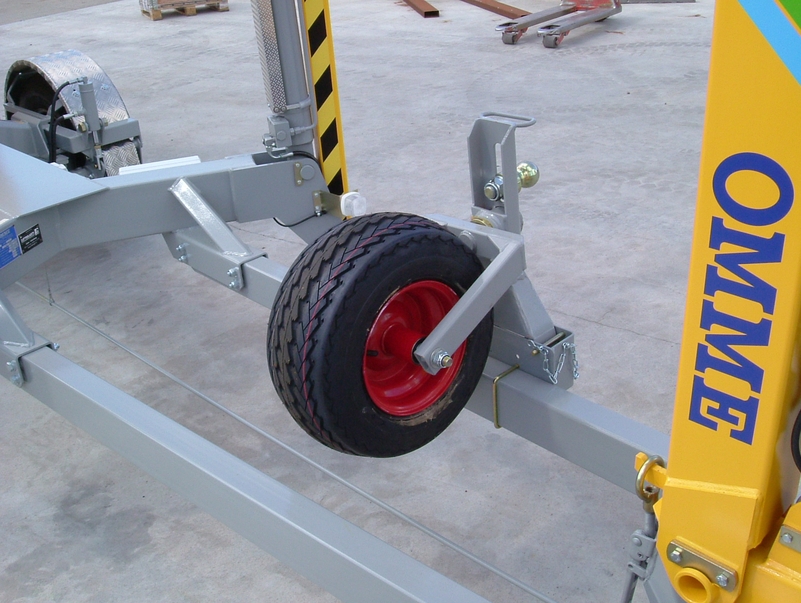

Holder for nose wheel Option
Hour meter Option

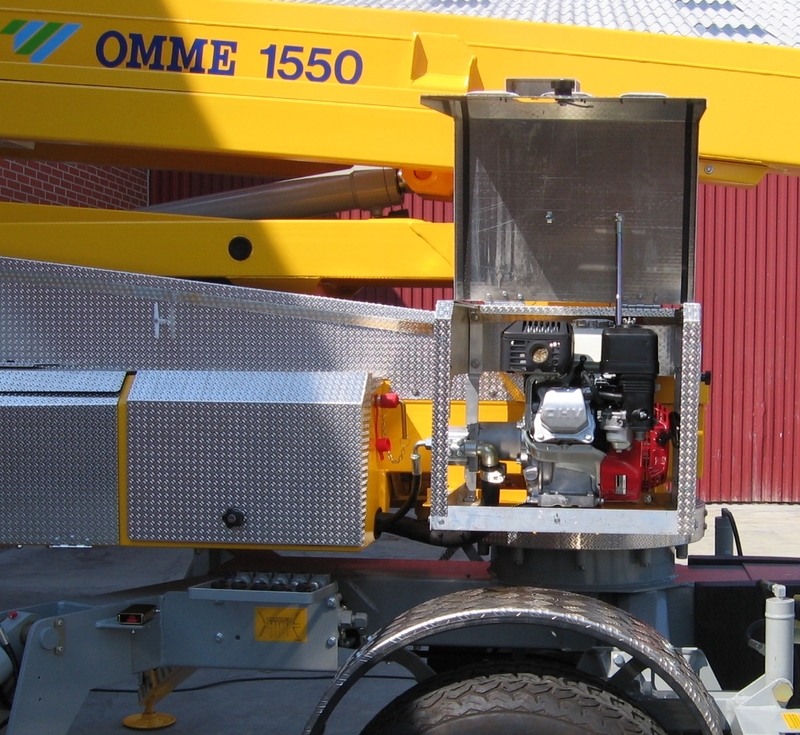

Petrol engine with oil pump Option
Plates for stabilizer Option
Special colour Option
Spotlight in basket O16 Option
Transformer Option

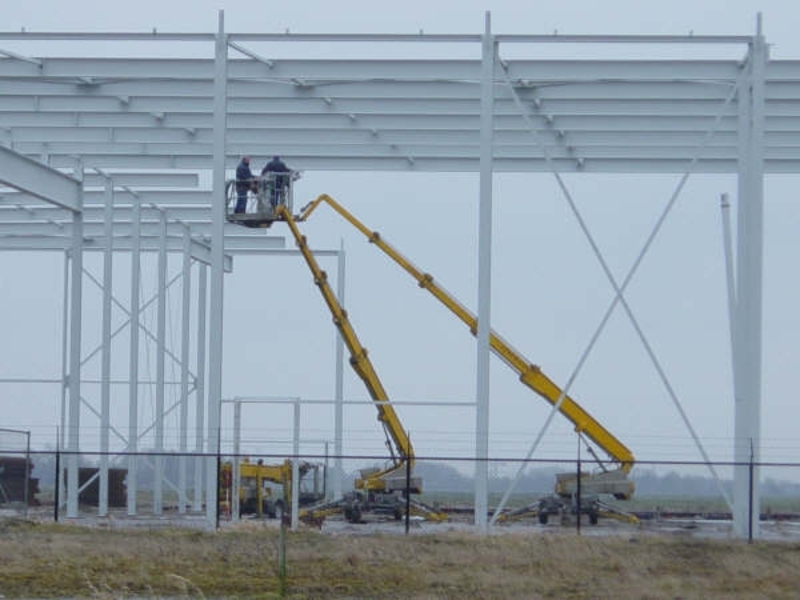

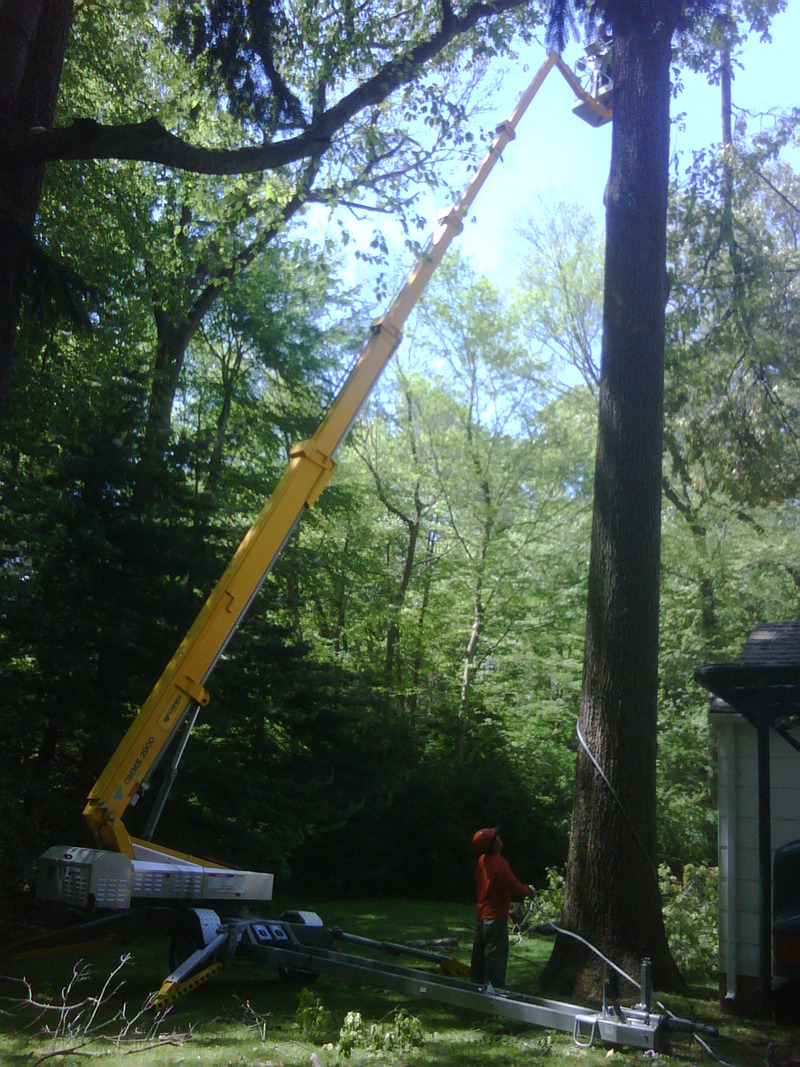

Photo Gallery
