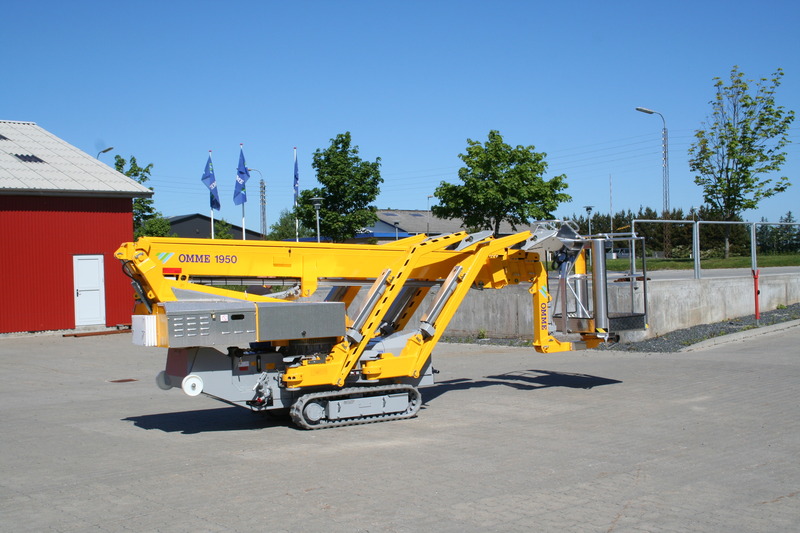

1950 R / 2100 RJ

1950 R / 2100 RJ
* Click on the image to view

Gradeability

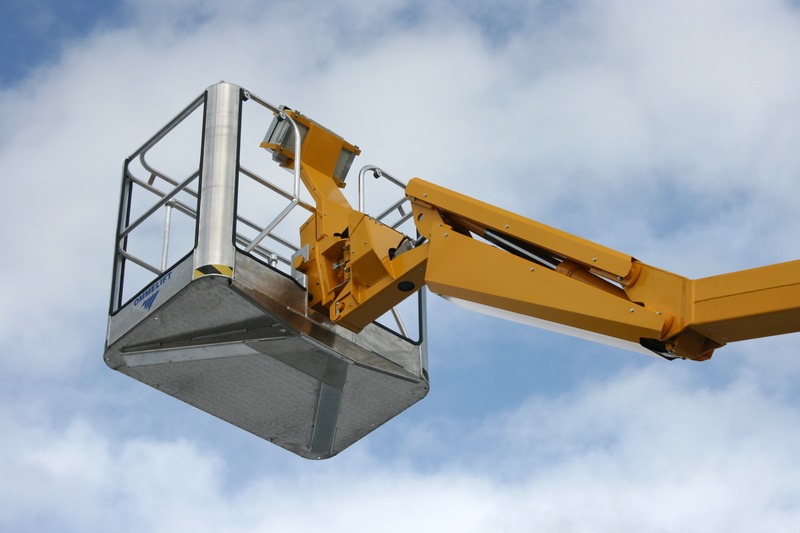

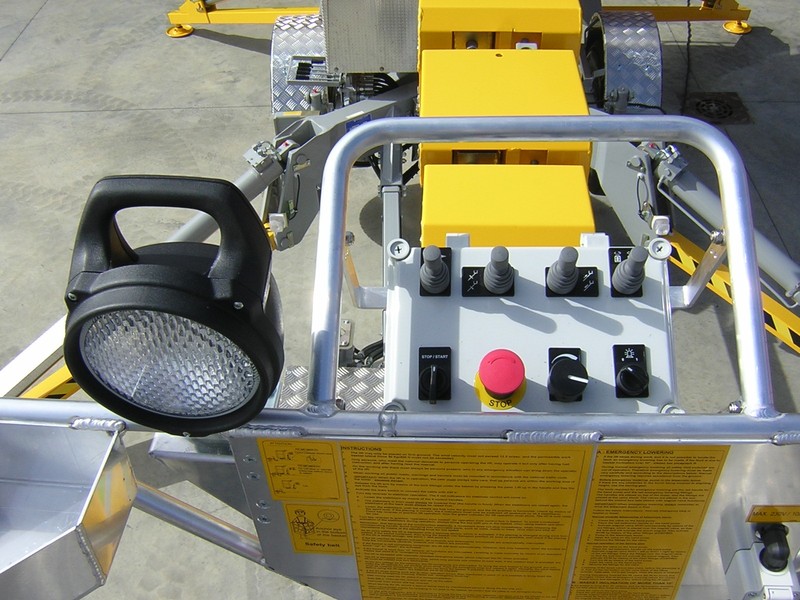

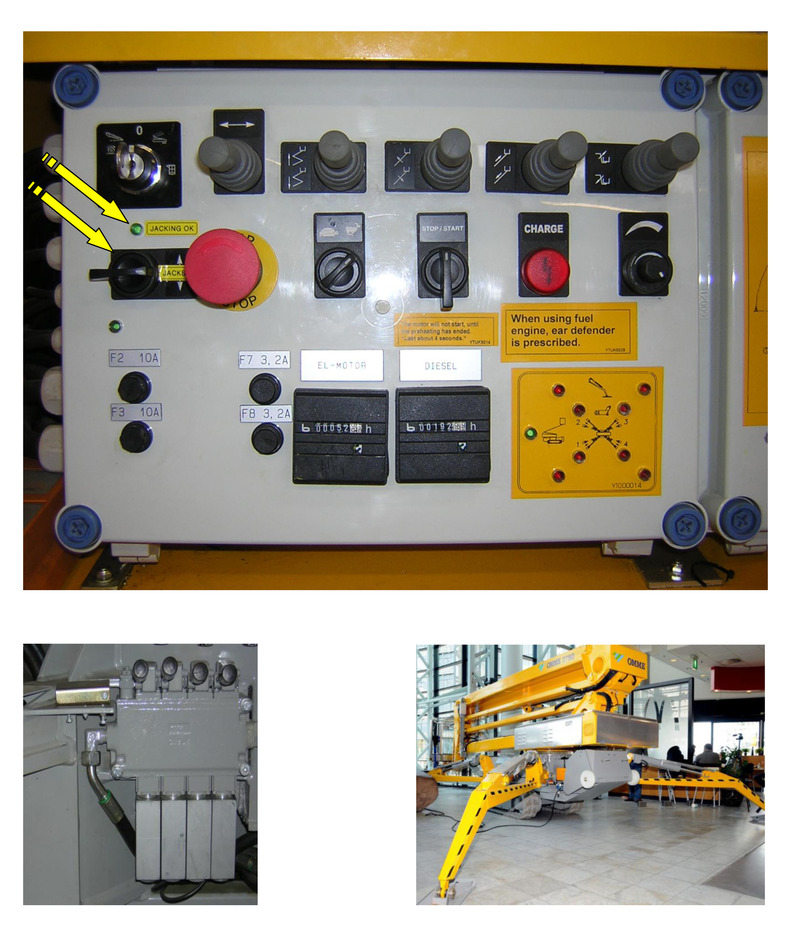

Type 1950 RB and 1950 RBD are identical apart from the power sources. Standard features include hydraulic stabilizers, turnable basket and proportional controls. The adjustable stabilizer spread provides substantial reduction in operational width. The basket mounting that forms a "fly" boom mounted to the top boom section gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places. The self-propulsion system is electronically operated by proportional levers comfortably placed in a light weight mobile control box.

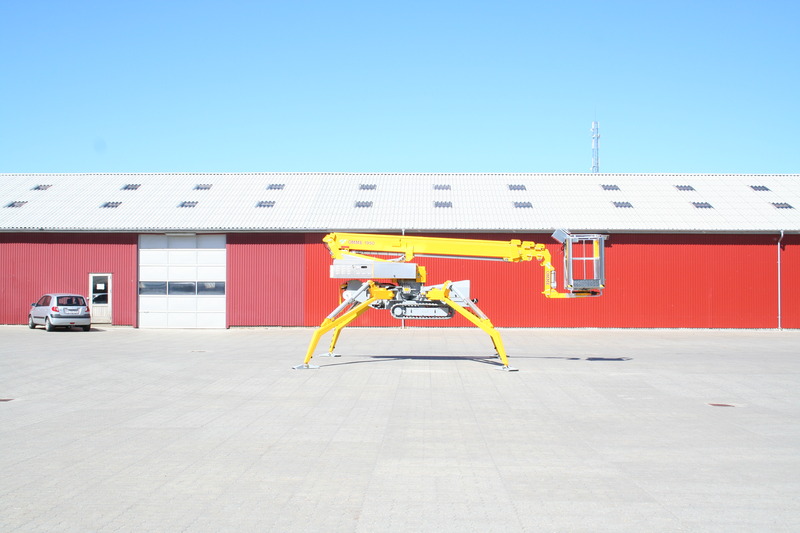

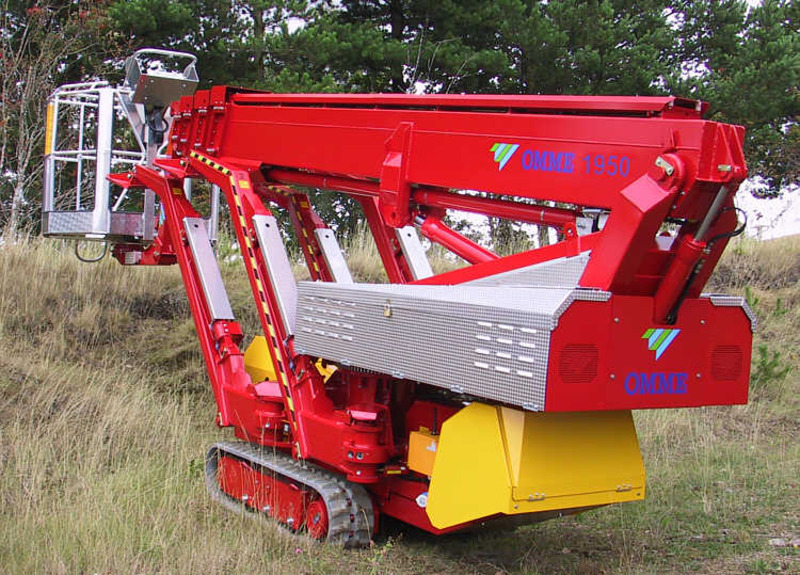

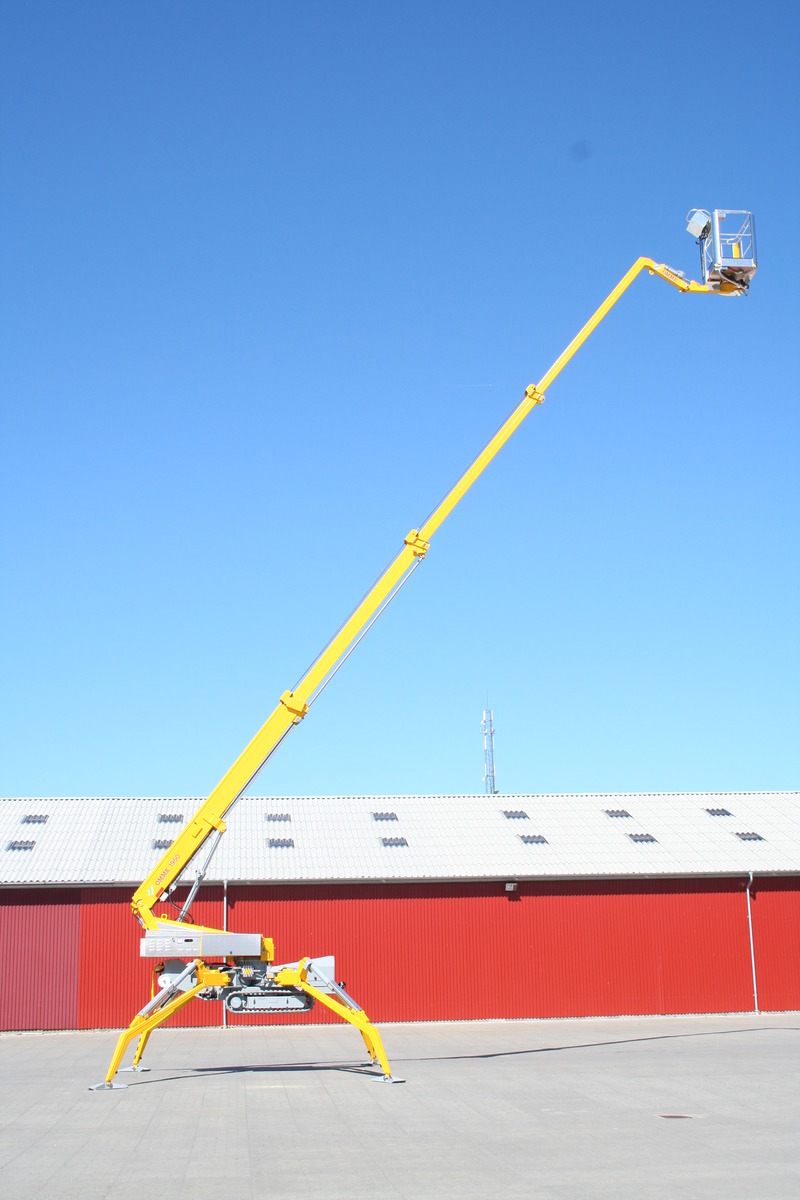

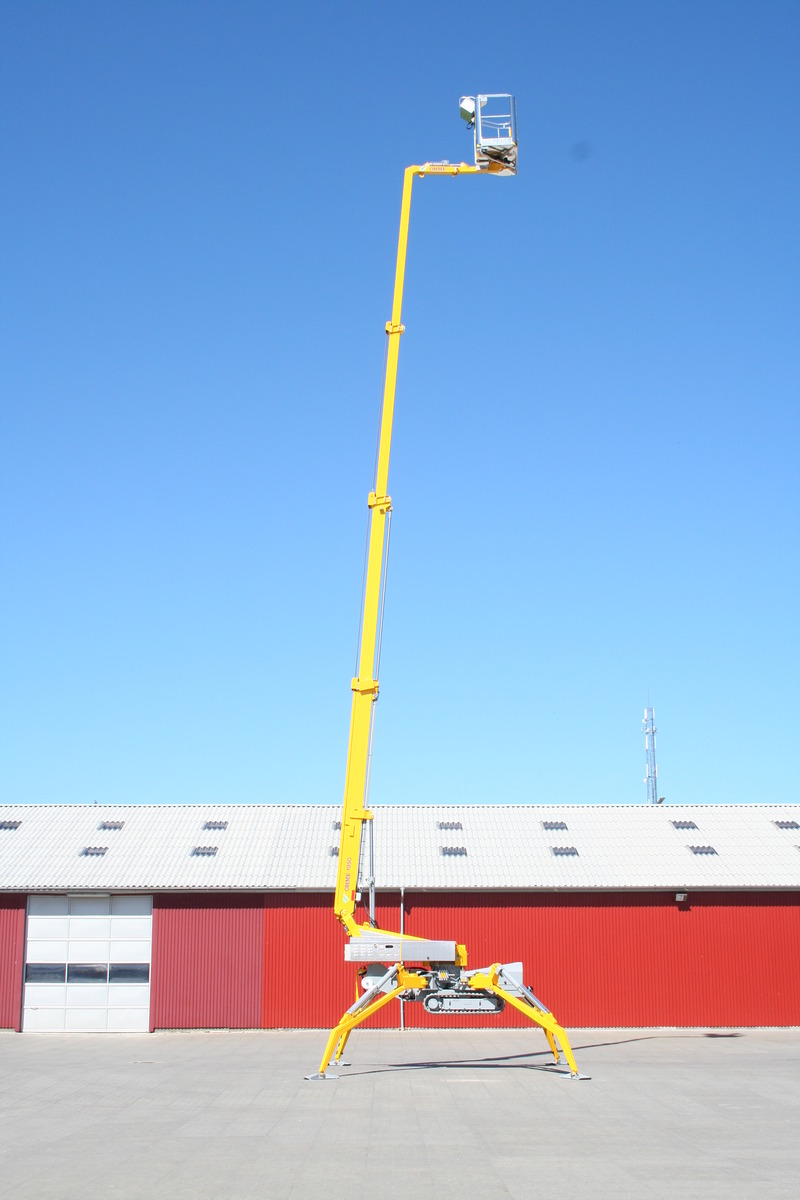

Crawlers at work:
1950 RB is powered by a heavy duty 24 v battery pack. In order to accomodate extreme and long term usage a transformer for direct mains connection is included. This type is especially suited for indoor operation.

1950 RBD is a battery and diesel engine bi-energy unit. This type is therefore suited for both indoor and outdoor usage.

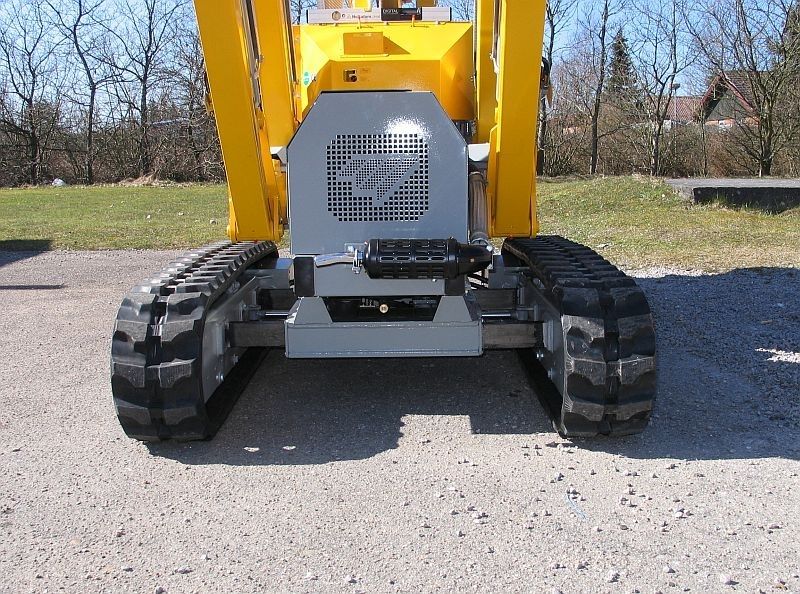

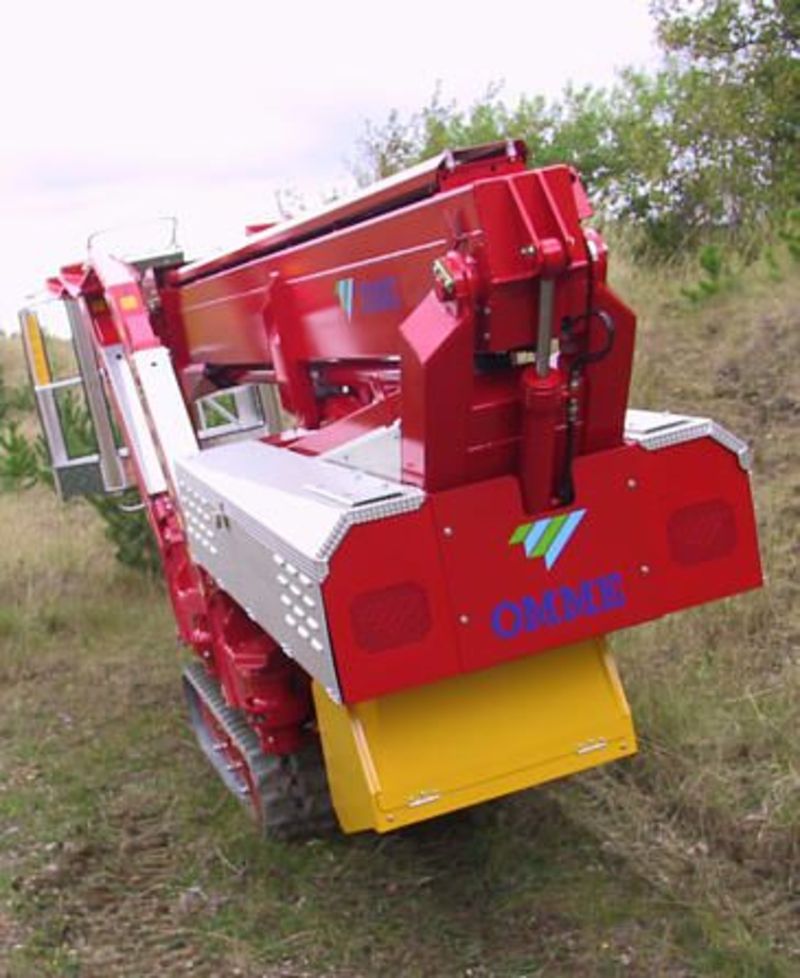

The diesel power pack provides an incredible gradeability of remarkable 35%, equivalent to 19.3°, an environment where lift deployment is also possible. Underlining the general stability is the easy self-propulsion manoeuvrability across a 25% (14°) slope. Combined with the strong, non-skid crawler belts this lift type is indeed go anywhere access.

Transport is available on a 3500 kg purpose designed trailer.


If you are interested please press Contact Form --> order


Technical features

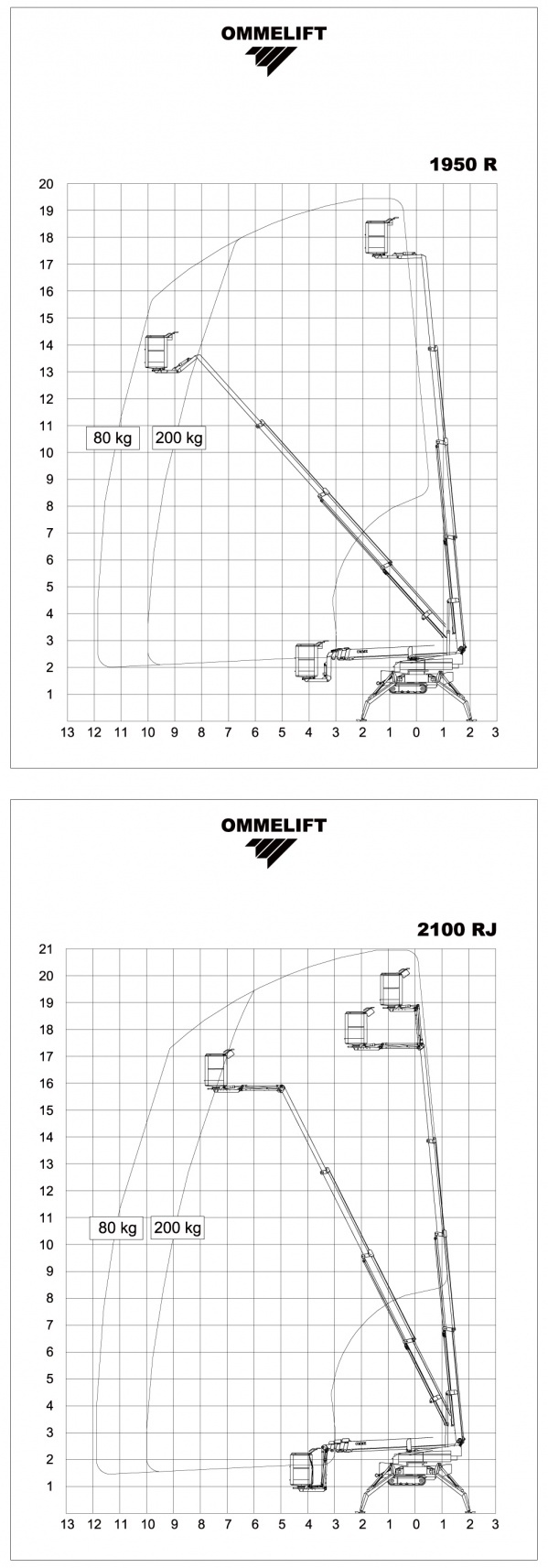

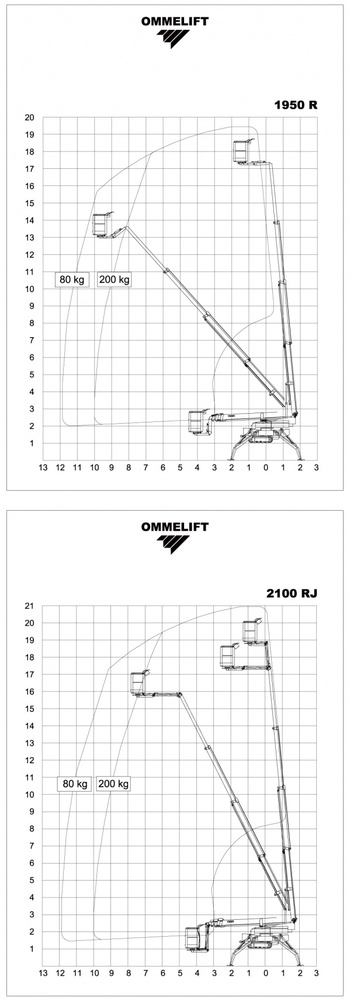

Max. working height 19.3 m (20.7 m *2100 RJ - flyjib )
Max. outreach 11.7 m
Basket size 1.25x0.8x1.1 m
Travelling length 6.33/5.58 m
Travelling height 1.99 m
Travelling width 1.10 m
Operational width 4.60 / 3.75 m
Rotation ± 355°
Max. basket load 200 kg
Total weight approx 3000 k
Turntable basket ± 41°
Battery 24 V 400 Ah/5h
Charger 24 V 30 A

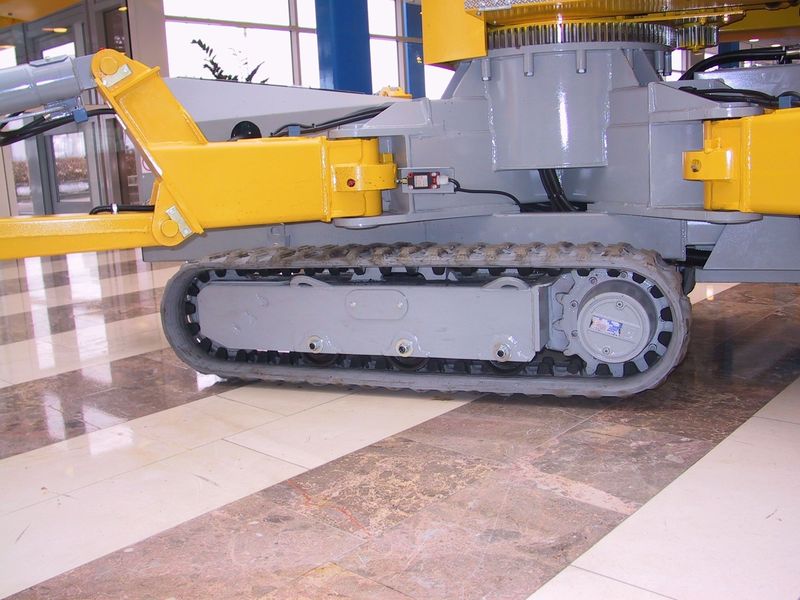

Crawler track length 1.42 m
Gradeability across slope up to 25 % 14 °
Gradeability up and down slope u...p to 35 % 19.3 °
Deployment ability procent 40 % 21.8 °
Number of supporting rollers 3
Adjustable tracks Option
Automatic stabilizer levelling s...down Option
Flash lights - crawler Option
Non-marking tracks Option
Spotlight in basket O16 Option
Transformer - crawler Option
Wireless remote control (drive o...nly) Option
Jib-movable Option
